Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Petroleum – Transport
TRANSLITE
®
Tank Truck Hose

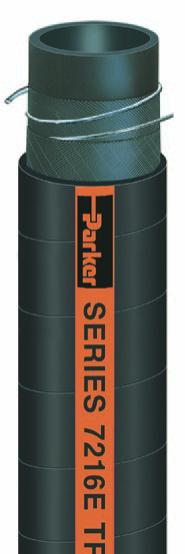

Series 7216E
Series 7216E is a lightweight suction and discharge hose designed to handle oil and refned
fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol and gasoline. Te hose
construction incorporates a wire helix that provides full suction capability, kink resistance,
and a path to conduct a static electrical charge to ground. Te cover is resistant to abrasion,
oil and weathering.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Black synthetic rubber; wrapped fnish
Temp. Range:
-35°F to +180°F (-37°C to +82°C)
Brand Method:
Black text on orange stripe
Brand Example:
PARKER SERIES 7216E TANK TRUCK HOSE 150 PSI MAX WP
Industry Standards:
None applicable
Applications:
• Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
• In-plant and storage tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Puma; Gates Longhorn; Kuriyama T605AA; Veyance Plicord
Flexwing Petroleum
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7216E-1002
1 25.4 2 1.300 33.0 0.47 0.21 3.0 76.2 150 10.3 43 100 Y
7216E-1252
1-1/4 38.1 2 1.690 42.4 0.65 0.29 4.0 102.0 150 10.3 43 100 Y
7216E-1502
1-1/2 38.1 2 2.000 49.8 0.92 0.42 5.0 127.0 150 10.3 43 100 Y
7216E-2002
2 50.8 2 2.500 63.8 1.10 0.50 6.0 152.4 150 10.3 43 100 Y
7216E-2502
2-1/2 63.5 2 3.000 76.9 1.55 0.70 7.0 177.8 150 10.3 *
100 Y
7216E-3002
3 76.2 2 3.660 93.0 2.08 0.94 8.0 203.2 150 10.3 *
100 Y
7216E-4002
4 102.0 2 4.650 117.5 2.80 1.27 11.0 279.4 150 10.3 *
100 Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
