Petroleum – Transport
Heavy Duty Tank Truck Hose

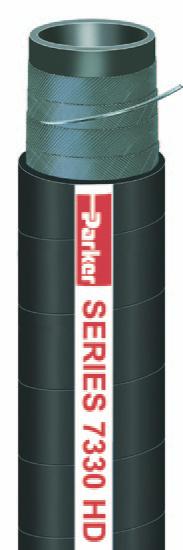

Series 7330
Series 7330 is a heavy duty, high pressure suction and discharge hose designed to handle
oil and refned fuels such as biodiesel (to B100 in dedicated service), diesel, ethanol and
gasoline. Te elevated working pressure is suitable for bulk loading and unloading. Te hose
construction incorporates a wire helix that provides full suction capability, kink resistance,
and a path to conduct a static electrical charge to ground. Te cover is resistant to abrasion,
oil and weathering. Series 7330 is available in 200-foot continuous lengths.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with helix wire
Cover:
Black chloroprene, wrapped fnish
Temp. Range:
-20°F to +180°F (-29°C to +82°C)
Brand Method:
Red text on white stripe
Brand Example:
PARKER SERIES 7330 HD TANK TRUCK 300 PSI MAX WP
MADE IN USA (DATE CODE)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
• High pressure in-plant and storage tank transfer
• High pressure bulk loading/unloading; delivery, transport
Vacuum:
Full
Compare to:
Veyance Plicord Super Black Flexwing
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7330-1250
1-1/4 31.8 2 1.686 42.8 0.71 0.32 6.0 152.4 300 20.7 *
100 N
7330-1500
1-1/2 38.0 2 1.976 50.2 1.00 0.45 8.0 203.2 300 20.7 *
100 N
7330-2000
2 50.8 4 2.622 66.6 1.57 0.71 8.0 203.2 300 20.7 *
100 N
7330-2000200
2 50.8 4 2.622 66.6 1.57 0.71 8.0 203.2 300 20.7 *
200 Y
7330-3000
3 76.2 4 3.654 92.8 2.41 1.09 15.0 381.0 300 20.7 TM 100 N
7330-3000200
3 76.2 4 3.654 92.8 2.41 1.09 15.0 381.0 300 20.7 TM 200 Y
7330-4000
4 101.6 4 4.840 123.0 4.12 1.87 20.0 508.0 300 20.7 *
100 N
7330-4000200
4 101.6 4 4.840 123.0 4.12 1.87 20.0 508.0 300 20.7 *
200 Y
7330-6000
6 152.4 6 6.968 177.0 6.99 3.17 36.0 914.4 300 20.7 *
100 N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use for petroleum transfer or fuel delivery service in submerged applications, such as marine fueling.
!
