Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
P
etroleum – Transport
TRANSLITE
®
Tank Truck Hose

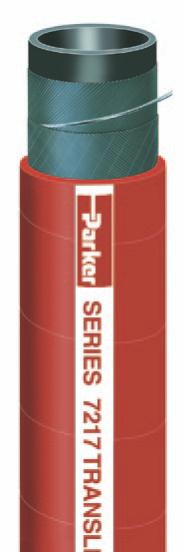

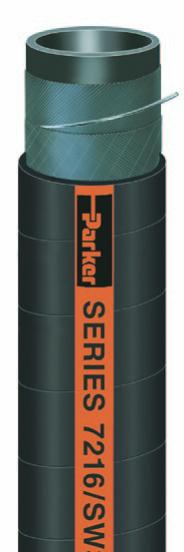

Series 7216 (Black) and Series 7217 (Red)
Series 7216/7217 is a suction and discharge hose designed to handle oil and
refned fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol
and gasoline. Te hose construction incorporates a wire helix that provides
full suction capability, kink resistance, and a path to conduct a static electrical
charge to ground. Te cover is resistant to abrasion, oil and weathering. Series
7216/7217 is available in 200-foot continuous lengths.
NOTE:
Refer to the table on pages 213-214 for fuel compatibility and service
conditions.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies with wire helix
Cover:
7216:
Black nitrile; wrapped fnish
7217:
Red chloroprene; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
7216:
Black text on orange stripe
7217:
Red text on white stripe
Brand Example:
7216:
PARKER SERIES 7216/SW309 TRANSLITE
®
TANK
TRUCK HOSE XXX PSI MAX WP MADE IN USA (DATE CODE)
7217:
PARKER SERIES 7217 TRANSLITE
®
TANK TRUCK
HOSE 150 PSI MAX WP MADE IN USA (DATE CODE)
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Biodiesel (to B20 in dedicated service), diesel, ethanol,
gasoline, oil
• In-plant and storage tank transfer
• Delivery, transport
Vacuum:
Full
Compare to:
Boston Puma; Gates Longhorn; Veyance Plicord Flexwing
Packaging:
Coils
WARNINGS!
Couplings attached with bands or
clamps may reduce the working
pressure of the hose assembly to
less than the maximum rated working
pressure of the hose. Refer to the
NAHAD Industrial Hose Assembly
Guidelines.
Do not use for petroleum transfer or
fuel delivery service in submerged
applications, such as marine fueling.
!
Series 7216 (Black) and Series 7217 (Red)
Part
Number
7216 or
7217
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
7216
Stock
Status
**
7217
Stock
Status
**
-1002
1 25.4 2 1.364 34.6 0.42 0.19 2.0 50.8 150 10.3
*
100 Y N
-1252
1-1/4 31.8 2 1.670 42.4 0.59 0.27 3.0 76.2 150 10.3
*
100 Y N
-1502
1-1/2 38.1 2 1.968 50.0 0.83 0.38 4.0 101.6 150 10.3 RST 100 Y Y
-2002
2 50.8 2 2.520 64.0 1.14 0.52 6.0 152.4 150 10.3 RE, RST,
TM
100 Y Y
-2502
2-1/2 63.5 2 3.028 76.9 1.43 0.65 9.0 228.6 150 10.3
*
100 Y N
-3002
3 76.2 2 3.543 90.0 1.83 0.83 12.0 304.8 150 10.3 RE, RST,
TM
100 Y Y
-4002
4 101.6 2 4.656 118.3 2.97 1.35 16.0 406.4 150 10.3 HAPS 100 Y N
-5004***
5 127.0 4 5.787 147.0 4.46 2.02 39.0 990.6 150 10.3
*
100 N n/a
-6004***
6 152.4 4 6.811 173.0 5.79 2.63 48.0 1219.2 150 10.3
*
100 N n/a
-8004***
8 203.2 4 8.976 228.0 9.42 4.27 72.0 1828.8 75 5.2
*
50 N n/a
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
*** Series 7216 only.
