Petroleum – Aircraft
GOLD LABEL®
Aircraft Fueling Hose
API/IP 1529, NFPA 407, BS EN1361
Series 7776

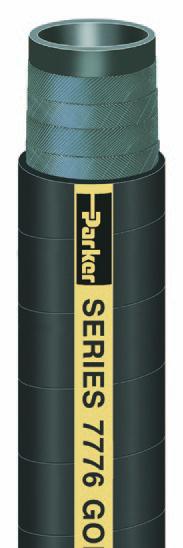

Series 7776 is a high pressure hose for top deck reel and platform type aircraft fueling
equipment. Te hose construction and materials provide a path to conduct a static
electrical charge to ground, the premium nitrile tube minimizes permeation and will not
contaminate product going through the hose, and the nitrile cover is resistant to abrasion,
oil and weathering. Te hose is also suitable for defueling service at low pressures (suction/
vacuum rating to 8 in. Hg). Series 7776 is available in 200-foot continuous lengths.
NOTES:• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile plies
Cover: Static conductive black nitrile; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Side One: Embossed
Side Two: Black text on gold stripe
Brand Example: Side One: PARKER SERIES 7776 (ID) API/IP 1529/2005 TYPE C
GRADE 2 NFPA 407 BS EN 1361/2004 (DATE CODE) WP 2068 KPa
(300 PSI)
Side Two: PARKER GOLD LABEL® AIRCRAFT FUELING HOSE
Design Factor: 4:1
Industry Standards: API 1529:2005, Type E, Grade 2; NFPA 407:2007; BS EN1361:2004
Applications: Aircraft fueling with avgas and jet fuel
Vacuum: To 8" Hg
Compare to: Contitech Elafex HD-C; Veyance Jet Ranger & Wingcraft;
Semperit 48137 TAPC
Packaging: Coils (bulk hose available only to Parker Certifed Aircraft Fueling Hose
Assembly Fabricators)
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Drum/
Reel
OD
(in)
Drum/Reel
OD
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Max
Lg
(ft)
Stock
Status
**
7776-0750 3/4 19.1 2 1.378 35.0 0.57 0.26 7.5 190.5 300 20.7 200 N
7776-1000 1 25.4 2 1.630 41.4 0.69 0.31 10.0 254.0 300 20.7 200 Y
7776-1250 1-1/4 31.8 4 1.910 48.5 0.88 0.40 13.0 330.2 300 20.7 200 Y
7776-1500 1-1/2 38.1 4 2.190 55.6 1.07 0.49 15.0 381.0 300 20.7 200 Y
7776-2000 2 50.8 4 2.740 69.6 1.46 0.66 20.0 508.0 300 20.7 200 Y
7776-2500 2-1/2 63.5 4 3.260 82.8 1.81 0.82 25.0 635.0 300 20.7 200 Y
7776-3000 3 76.2 4 3.760 95.5 2.08 0.94 30.0 762.0 300 20.7 200 Y
7776-4000 4 101.6 4 5.000 127.0 3.61 1.64 40.0 1016.0 300 20.7 200 Y
Assemblies: Per customer specifcation; hydrostatically tested to 600 psi (41.4 bar) and certifed. Available only from Parker or Parker
Certifed Aircraft Fueling Hose Assembly Fabricators.
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
