Oil Field

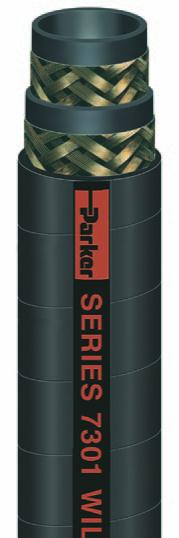

WILDCATTER®
Hot Oiler Hose
Series 7301
Series 7301 is a heavy duty, high pressure hose for hot oil at 275°F continuous/300°F
intermittent (135°C/149°C). Te hose construction incorporates multiple wire braids of
reinforcement for crush resistance, durability, kink resistance and a path to conduct a static
electrical charge to ground. Te cover is resistant to abrasion, heat, oil and weathering.
Tube: Black chloroprene
Reinforcement: Multiple wire braids
Cover: Black chloroprene; wrapped fnish
Temp. Range: -40°F to +275°F/300°F (-40°C to +135°C/149°C)
Brand Method: Red text on black stripe
Brand Example: PARKER SERIES 7301 WILDCATTER HOT OILER HOSE (ID)
2250 PSI MAX WP TEMP RATING 275°F CONTINUOUS
300°F INTERMITTENT 001 (DATE CODE)
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Hot asphalt, glue, tar, oil, wax
• In-plant transfer; delivery trucks
• Construction, general industrial, oil feld
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7301-1502 1-1/2 38.1 2 2.000 50.8 1.59 0.72 13.0 330.2 2250 155.1 71 50 Y
7301-1502075 1-1/2 38.1 2 2.000 50.8 1.59 0.72 13.0 330.2 2250 155.1 71 75 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
