Oil Field

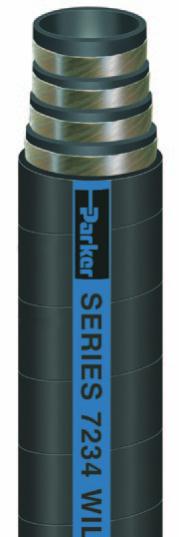

WILDCATTER®
SlimHole Rotary Drill Hose
Series 7234
Series 7234 is a heavy duty, high pressure, versatile hose designed to handle cement
solutions, mild chemicals, oil and water in oil feld applications such as rotary service on
portable drilling units, reverse circulation systems, seismic equipment and workover rigs.
Te hose construction incorporates multiple plies of high tensile wire reinforcement that
provide high pressure capability, crush resistance, durability, kink resistance and a path to
conduct a static eletrical charge to ground. Te nitrile/PVC cover is resistant to abrasion, oil
and weathering.
Tube: Black nitrile
Reinforcement: Multiple wire plies
Cover: Black nitrile/PVC; wrapped fnish
Temp. Range: -40°F to +200°F (-40°C to +93°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES 7234 WILDCATTER® 3000 PSI MAX WP (CAGE CODE)
(DATE/MFG CODE)
Design Factor: 3.3:1
Industry Standards: None applicable
Applications: • Cement solutions, mild chemicals, oil, water
• Portable drilling units, workover rigs
• General industrial, oil feld
Vacuum: Not recommended
Compare to: Gates Powerbraid Plus Slim Rotary Hole
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7234-2002 2 50.8 4 2.593 65.9 2.75 1.25 12.5 317.5 3000 206.8 WC 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
