Oil Field

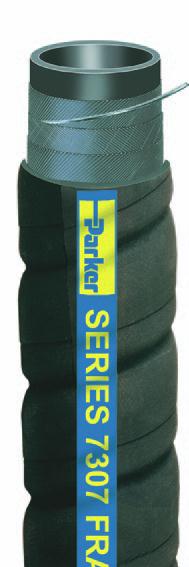

Corrugated Fracturing (Frac) Tank Hose
Series 7307
Series 7307 is a versatile suction and discharge hose designed to handle brine, crude oil,
drilling mud, mild chemicals, petroleum waste, sediments, sludge, slurries and water in oil
feld applications such as frac tank service. Te corrugated hose construction incorporates
a wire helix that provides full suction capability, fexibility, kink resistance, and a path to
conduct a static electrical charge to ground. Te nitrile/SBR cover is resistant to abrasion,
oil and weathering. Series 7307 is available in 200-foot continuous lengths.
NOTE: Do not use with refned oil or fuel.
Tube: Black nitrile/SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black nitrile/SBR; corrugated wrapped fnish
Temp. Range: -20°F to +180°F (-28°C to +82°C)
Brand Method: Yellow text on blue stripe
Brand Example: PARKER SERIES 7307 OILFIELD SUCTION & FRAC TANK HOSE 150 PSI
MADE IN USA
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Brine, crude oil, mild chemicals, petroleum waste, sediments, sludge,
slurries, water
• Frac tank transfer, oil feld waste recovery, general industrial
Vacuum: Full
Compare to: Texcel Super Frac
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7307-6000 6 152.4 3 6.710 170.4 4.55 2.06 18.0 457.2 150 10.3 * 100 Y
7307-8000 8 203.2 3 8.800 223.5 6.90 3.13 24.0 609.6 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
