Oil Field
TITANFLEX®

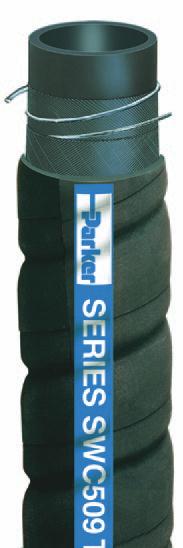

Corrugated Oil Field Suction / VacuumHose
Series SWC509
Series SWC509 is a fexible, lightweight high pressure suction and discharge hose designed
to handle brine, crude oil, mild chemicals, petroleum waste, sediments, sludge, slurries
and water in harsh oil feld bottom sediment and waste pit recovery applications. Te
corrugated hose construction incorporates a wire helix that provides full suction capability,
fexibility, kink resistance, and a path to conduct a static electrical charge to ground.
Te cover is resistant to abrasion and weathering. Series SWC509 is available in 200-foot
continuous lengths.
NOTE: Do not use with refned oil or fuel.
Tube: Black nitrile
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; corrugated wrapped fnish
Temp. Range: -40°F to +160°F (-40°C to +71°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES SWC509 TITANFLEX® OIL FIELD VACUUM HOSE
XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Brine, crude oil, mild chemicals, petroleum waste, sediments, sludge,
slurries, water
• Oil feld equipment and service trucks
Vacuum: Full
Compare to: Jason Tupelo 4677; Kuriyama T601AA; Texcel Tex-Vac; Veyance Flextra
Oilfeld
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SWC509-1000 1 25.4 2 1.500 38.1 0.58 0.26 1.0 25.4 250 17.2 * 100 N
SWC509-1500 1-1/2 38.1 2 2.063 51.6 0.90 0.41 1.5 38.1 250 17.2 * 100 N
SWC509-2000 2 50.8 2 2.563 65.0 1.21 0.55 2.0 50.8 250 17.2 * 100 Y
SWC509-2500 2-1/2 63.5 2 3.125 77.0 1.44 0.65 2.5 63.5 200 13.8 * 100 N
SWC509-3000 3 76.2 2 3.625 91.0 1.92 0.87 3.0 76.2 200 13.8 * 100 Y
SWC509-4000 4 101.6 2 4.625 117.0 2.59 1.17 4.0 101.6 150 10.3 * 100 Y
SWC509-6000 6 152.4 4 6.810 172.9 5.48 2.49 10.0 254.0 125 8.6 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
