Sand Recovery Hose
Suction / Vacuum
3/16" Natural Rubber Tube
Series SW409

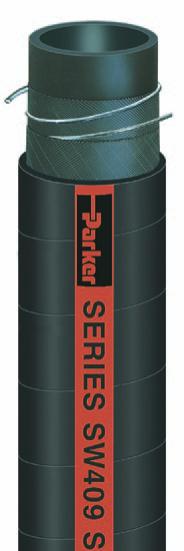

Series SW409 is a heavy duty suction and discharge hose for transfer and recovery of sand
and severely abrasive materials. Te static dissipating 3/16" natural rubber tube provides
abrasion resistance, and the dual wire helix provides full suction capability and kink
resistance. Te SBR cover is resistant to abrasion, cuts, scufs and weathering.
Tube: 3/16" Black natural rubber; static dissipating
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on red stripe
Brand Example: PARKER SERIES SW409 SAND RECOVERY HOSE XXX PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, sand
• Construction, general industrial, mining, sand clean-up/recovery
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW409-2000 2 50.8 2 2.750 69.9 1.41 0.64 6.0 152.4 200 13.8 100 N
SW409-3000 3 76.2 2 3.750 95.3 2.42 1.10 12.0 304.8 175 12.1 100 N
SW409-4000 4 101.6 2 4.750 120.7 3.16 1.43 16.0 406.4 150 10.3 100 Y
SW409-5000 5 127.0 2 5.813 147.6 4.25 1.93 20.0 508.0 100 6.9 100 N
SW409-6000 6 152.4 2 6.813 173.0 5.30 2.40 24.0 609.6 100 6.9 100 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
