Material Handling /Dredge

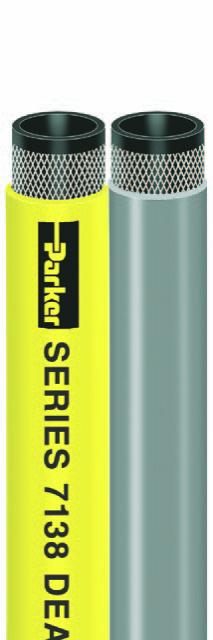

Deadman Twin Sensing Hose
Series 7138 (Yellow / Gray)
Series 7138 is a fexible air conduit that connects the remote hand control to the
dispenser control valves in abrasive material blasting systems. When the hand trigger is
disengaged, the delivery system immediately shuts down, mininimizing uncontrolled
high velocity discharge and spillage. Series 7138 hose lines are bonded to prevent
separation and maximize fexibility, and the gray/yellow color coding provides quick
and easy identifcation. Te hose features an EPDM tube that is resistant to compressor
oil mist and an EPDM cover that is resistant to abrasion, heat and weathering.
Tube: Black EPDM
Reinforcement: Multiple textile plies
Cover: Yellow/gray EPDM; smooth fnish
Temp. Range: -30°F to +200°F (-34°C to +93°C)
Brand Method: Black ink on yellow hose
Brand Example: PARKER SERIES 7138 DEADMAN TWIN HOSE (ID) 200 PSI MAX
WP MADE IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Air
• Clean, condition or strip cement, steel, stone and other materials
as a component of abrasive material blasting systems
• Construction, general industrial, shipyards
Vacuum: Not recommended
Packaging: Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7138-191 3/16 4.8 2 0.438 11.1 0.13 0.06 2.0 50.8 200 13.8 * 750 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
