Material Handling /Dredge
SUPER-FLEX®
Corrugated Material Handling Hose
Suction / Vacuum
3/16" Natural Rubber / SBR Blend Tube

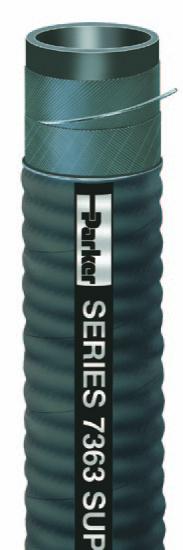

Series 7363
Series 7363 is a fexible suction and discharge hose for dry or wet abrasive materials
in applications such as loading/unloading barges, hoppers and railcars, and debris
evacuation. Te static dissipating 3/16" natural rubber/SBR blend tube provides abrasion
resistance, and the wire helix provides full suction capability and kink resistance. Te
corrugated natural rubber blend cover provides fexibility and is resistant to abrasion and
weathering. Series 7363 is available in 200-foot continuous lengths.
Tube: Black natural rubber/SBR blend; static dissipating
Reinforcement: Multiple textile plies with wire helix
Cover: Black natural rubber/SBR blend; corrugated wrapped fnish
Temp. Range: -40°F to +160°F (-40°C to +71°C)
Brand Method: White text on black stripe
Brand Example: PARKER SERIES 7363 SUPER-FLEX® ABRASIVE SUCTION AND
DISCHARGE 100 PSI MAX WP MADE IN USA (LOT#)
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, water
• Loading/unloading barges, hoppers and railcars
• Construction, general industrial, mining, sewer cleaning
Vacuum: Full
Compare to: Boston Sabertooth; Diversifex; Gates 688SB; Veyance Plicord HD
Vacuum
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
7363-2000 2 50.8 3 2.740 69.6 1.53 0.69 6.0 152.4 100 6.9 100 N
7363-3000 3 76.2 3 3.800 96.6 2.35 1.07 9.0 228.6 100 6.9 100 Y
7363-4000 4 101.6 3 4.845 123.1 3.26 1.48 12.0 304.8 100 6.9 100 Y
7363-5000 5 127.0 3 5.929 150.6 4.64 2.10 15.0 381.0 100 6.9 100 N
7363-6000 6 152.4 3 6.937 176.2 5.60 2.54 18.0 457.2 100 6.9 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
