Mate
rial Handling /Dredge

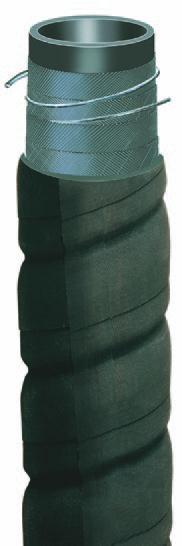

Corrugated Material Handling Hose
1/8" Natural Rubber Tube
Series EWC334
CustomMade Hose
Series EWC334 is a fexible, lightweight, low pressure material transfer hose for dry cement,
powders and similar abrasive materials. Te 1/8" natural rubber tube provides excellent
abrasion resistance, durability and rebound, and the dual wire helix provides full suction
capability, kink resistance and a path to conduct a static charge to ground. Te corrugated
SBR cover provides fexibility and is resistant to abrasion, cuts, scufs and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: 1/8" Black natural rubber
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; corrugated wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, water
• Construction, general industrial
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EWC334-6000 6 152.4 4 6.875 174.6 5.60 2.54 29.0 736.6 135 9.3 100
EWC334-6625 6-5/8 168.3 4 7.500 190.5 6.40 2.90 32.0 812.8 125 8.6 100
EWC334-8000 8 203.2 4 8.875 225.4 8.00 3.63 38.0 965.2 100 6.9 100
EWC334-8625 8-5/8 219.1 4 9.563 242.9 8.80 3.99 42.0 1066.8 95 6.6 100
EWC334-10000 10 254.0 4 11.000 279.4 11.60 5.26 48.0 1219.2 85 5.9 50
EWC334-10750 10-3/4 273.1 4 11.750 298.5 12.40 5.62 52.0 1320.8 75 5.2 50
EWC334-12000 12 304.8 4 13.125 333.4 16.50 7.48 58.0 1473.2 65 4.5 50
EWC334-12750 12-3/4 323.9 4 13.872 352.4 17.50 7.94 62.0 1574.8 65 4.5 50
