Material Handling /Dredge
Heavy Duty Dry Cement Hose
1/4" SBR Tube

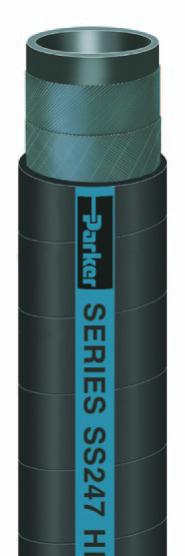

Series SS247
Series SS247 is a fexible, heavy duty discharge hose for dry abrasive materials such as
pebble lime and sand. Te static dissipating 1/4" SBR tube provides abrasion resistance and
the SBR cover is resistant to abrasion, cuts, scufs and weathering.
NOTE: Customized versions of this product are available. Contact Parker.
Tube: 1/4" Black SBR; static dissipating
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +83°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES SS247 HEAVY DUTY DRY CEMENT HOSE XX PSI WP
MADE IN USA
Design Factor: 3:1
Industry Standards: None applicable
Applications: • Dry abrasive materials, cement, pebble lime, powders, sand, silica
• In-plant transfer/loading, bulk transport trucks
• Construction, general industrial
Vacuum: Not recommended
Compare to: Boston Lynx HD; Gates Dry Cement Delivery; Thermoid Transporter;
Veyance Black Softwall
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS247-4000 4 101.6 2 4.750 120.7 2.49 1.13 75 5.2 100 Y
SS247-4500 4-1/2 114.3 2 5.250 133.4 2.79 1.27 75 5.2 100 N
SS247-5000 5 127.0 2 5.750 146.1 3.11 1.41 75 5.2 100 Y
SS247-6000 6 152.4 2 6.750 171.5 3.69 1.67 70 4.8 100 N
SS247-8000 8 203.2 2 8.750 222.3 4.88 2.21 60 4.1 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
