Mate
rial Handling /Dredge

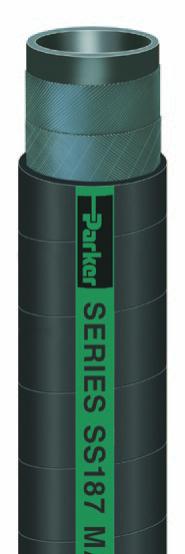

SPARTAN™
Dry Cement Hose
3/16" SBR Tube
Series SS187
Series SS187 is a gravity fow and low pressure discharge hose for dry cement and abrasive
materials in bulk transfer applications. Te static dissipating 3/16" SBR tube provides
abrasion resistance and the SBR cover is resistant to abrasion, cuts, scufs and weathering.
Tube: 3/16" Black SBR; static dissipating
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +83°C)
Brand Method: Black text on green stripe
Brand Example: PARKER SERIES SS187 MATERIAL HANDLING HOSE 50 PSI
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive dry materials, cement, lime, powders, silica
• In-plant transfer/loading, bulk transport turcks
• Construction, general industial
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
SS187-4000 4 101.6 2 4.595 116.7 1.85 0.84 50 3.4 100 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
