Dock
Heavy Duty Dock Hose –
Petroleum Service

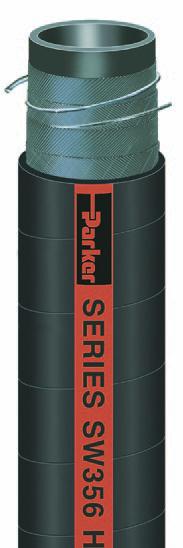

Series SW356
Series SW356 is a heavy duty oil suction and discharge (OS&D)/dock hose for transferring
oil between tankers, barges, and storage tanks. Te hose construction incorporates a
specially formulated tube that resists media to 60% aromatic content. Te wire helix
provides full suction capability, kink resistance and a path to conduct a static electrical
charge to ground. Te rugged cover is resistant to abrasion, mild chemicals, oil and
weathering.
Tube: Black nitrile
Reinforcement: Multiple plies of tire cord with dual wire helix
Cover: Black synthetic rubber; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on red stripe
Brand Example: PARKER SERIES SW356 HEAVY DUTY OS&D HOSE XXX PSI WP
MADE IN U.S.A.
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Oil and fuel to 60% aromatic content
• Transfer between barges, storage tanks and marine vessels
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW356-4000 4 101.6 4 5.250 133.4 6.09 2.76 20.0 508.0 300 20.7 100 N
SW356-6000 6 152.4 4 7.375 187.3 9.80 4.45 34.0 863.6 300 20.7 100 Y
SW356-8000 8 203.2 4 9.375 238.1 12.69 5.76 46.0 1168.4 250 17.2 100 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
