Dock
Heavy Duty Dock Hose –
Petroleum Service
USCG

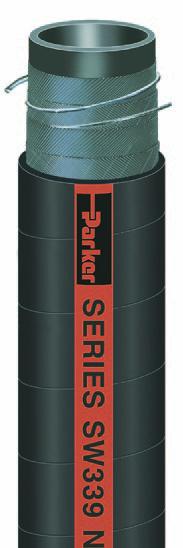

Series SW339
Series SW339 is a heavy duty oil suction and discharge (OS&D)/dock hose for transferring
oil between tankers, barges, and storage tanks. Te hose construction incorporates a
specially formulated tube that resists media to 50% aromatic content. Te dual wire helix
provides full suction capability, kink resistance and a path to conduct a static electrical
charge to ground. Te rugged cover is resistant to abrasion, mild chemicals, oil and
weathering. Series SW339 meets all United States Coast Guard (USCG) requirements for
dock/OS&D hose.
NOTES:• For corrugated hose, refer to Series SWC339.
• For larger diameter hose, refer to Series EW339.
Tube: Black nitrile
Reinforcement: Multiple plies of tire cord with dual wire helix
Cover: Black synthetic rubber; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on red stripe
Brand Example: PARKER SERIES SW339 NITRILE/OIL SERVICE 200 PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: USCG
Applications: • Oil and fuel to 50% aromatic content
• Transfer between barges, storage tanks and marine vessels
Vacuum: Full
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW339-4000 4 101.6 4 5.188 131.8 5.80 2.63 16.0 406.4 200 14 100 N
SW339-6000 6 152.4 4 7.250 184.2 9.41 4.27 36.0 914.4 200 14 100 N
SW339-8000 8 203.2 4 9.250 235.0 12.35 5.60 48.0 1219.2 200 14 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
