Composite

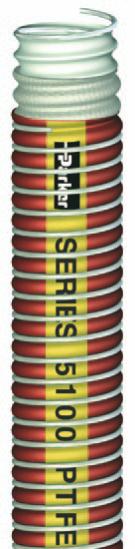

PTFE Chemical Transfer Hose
Series 5100
Inner Wire: Stainless steel (S)
Inner Liner: Polytetrafuoroethylene (PTFE / Tefon®) flm
Hose Wall: Multiple layers of fabric/flm/tubes
Cover: Red PVC coated polyester
Outer Wire: Stainless steel (S)
Temp Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Black text on gold stripe
Brand Example: PARKER SERIES 5100 PTFE CHEMICAL TRANSFER HOSE
250 PSI MAX WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: Chemicals, inks, paints, pharmaceuticals, plant processing, rail cars, tank
trucks
NOTE: Not for dry material service.
Vacuum: Full
Compare To: Apollo 1052T; Dantec Danfon SS/SG; Perafex SST/SGT Aggressive
Chemical; Tift 947 Tel-Flex SS/SG; Uni-Chem Uni-Flon SS/SG; Wilcox
4124SS/4121SG
Standard Wire: S (Stainless) inner and outer
Available Wire Options: See table below
Alternate P/N Example: 5100SG-4000 (Stainless inner, Galvanized outer)
Coupling Rec: Permanently attached one-piece male pipe or fanged ends; cam and
groove. Refer to page 387 for standard factory coupling options.
Assemblies: Per customer requirement; hydrostatically tested to 150% of the rated
working pressure. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Approx
Wt
(lbs/ft)
Min Bend
Rad
(in)
Max
Rec WP
(psi)
Max Lg
(ft)
5100SS-1000 1 25.4 0.8 5.0 250 75
5100SS-1500 1-1/2 38.1 1.0 6.0 250 75
5100SS-2000 2 50.8 1.2 6.5 250 75
5100SS-2500 2-1/2 63.5 1.6 8.0 250 75
5100SS-3000 3 76.2 2.0 9.5 250 70
5100SS-4000 4 101.6 4.4 16.0 250 70
5100SS-6000 6 152.4 7.0 20.0 250 65
5100SS-8000 8 203.2 10.0 29.0 250 65
See page 387 for additional coupling materials data.
Available Component Materials
Component Description Alpha Designation
in Hose Part Number
Inner Wire Stainless Steel (316) S
Outer Wire Galvanized Steel G
Stainless Steel (316) S
Inner Liner Polytetrafuoroethylene (PTFE) n/a (Standard)
Couplings Carbon Steel –
Stainless Steel –
WARNING! It is the responsibility of the user to determine
if the hose is suitable for the application. Elevated temperatures
can change the chemical resistance ratings. Many chemicals will
become more aggressive as temperatures increase, reducing the
ability of hose materials to withstand them. Contact Parker for
chemical compatibility data at elevated temperatures. Refer to the
Safety and Technical section of this catalog for safety, handling
and use information. Refer to the Composite Hose table in the
Chemical Guide section of this catalog to determine compatibility
with specifc chemicals. Contact Parker for additional chemical
compatibility information. If no data exists, users are required to
perform compatibility testing at the desired temperature.
!
