Composite

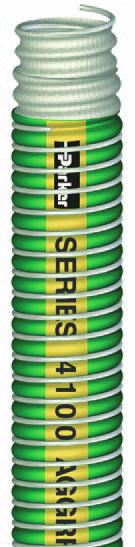

Aggressive Chemical Transfer Hose
Series 4100
Inner Wire: Stainless steel (S)
Inner Liner: Polypropylene fabric
Hose Wall: Multiple layers of fabric/flm/tubes
Cover: Green PVC coated polyester
Outer Wire: Stainless steel (S)
Temp Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Black text on gold stripe
Brand Example: PARKER SERIES 4100 AGGRESSIVE CHEMICAL TRANSFER HOSE
250 PSI MAX WP MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: Chemicals, inks, paints, plant processing, rail cars, tank trucks
NOTE: Not for dry material service.
Vacuum: Full
Compare to: Apollo 1052S; Dantec SS/SG; Perafex SSP/SGP Chemical;
Tift 951 SS/SG; Uni-Chem SS/SG; Wilcox 4094SS/4091SG
Standard Wire: S (Stainless) inner and outer
Available Wire Options: See table below
Alternate P/N Example: 4100SG-4000 (Stainless inner, Galvanized outer)
Coupling Rec: Permanently attached one-piece male pipe or fanged ends; cam and
groove. Refer to page 387 for standard factory coupling options.
Assemblies: Per customer requirement; hydrostatically tested to 150% of the
rated working pressure. Contact Parker.
Part
Number
ID
(in)
ID
(mm)
Approx
Wt
(lbs/ft)
Min Bend
Rad
(in)
Max
Rec WP
(psi)
Max Lg
(ft)
4100SS-1000 1 25.4 0.8 5.0 250 75
4100SS-1500 1-1/2 38.1 1.0 6.0 250 75
4100SS-2000 2 50.8 1.2 6.5 250 75
4100SS-2500 2-1/2 63.5 1.6 8.0 250 75
4100SS-3000 3 76.2 2.0 9.5 250 70
4100SS-4000 4 101.6 4.4 16.0 250 70
4100SS-6000 6 152.4 7.0 20.0 250 65
4100SS-8000 8 203.2 10.0 29.0 250 65
See page 387 for additional coupling materials data.
Available Component Materials
Component Description Alpha Designation
in Hose Part Number
Inner Wire Stainless Steel (316) S
Outer Wire Galvanized Steel G
Stainless Steel (316) S
Inner Liner Polypropylene n/a (Standard)
Couplings Carbon Steel –
Stainless Steel –
WARNING! It is the responsibility of the user to determine if the
hose is suitable for the application. Elevated temperatures can change
the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose
materials to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. Refer to the Safety and Technical section
of this catalog for safety, handling and use information. Refer to the
Composite Hose table in the Chemical Guide section of this catalog
to determine compatibility with specifc chemicals. Contact Parker for
additional chemical compatibility information. If no data exists, users are
required to perform compatibility testing at the desired temperature.
!
