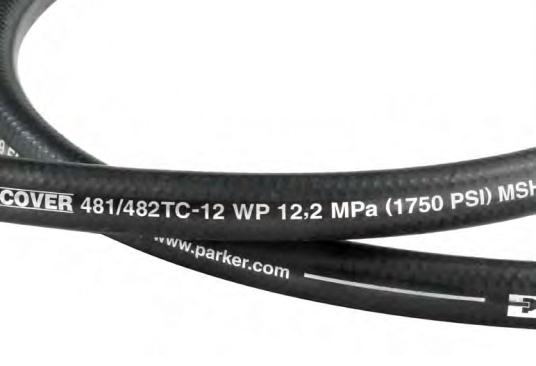

482TC/ST
Hydraulic
Synthetic rubber inner tube provides wide fuid compatibility.
• 1/2 minimum bend radius for ease of routing
• Meets SAE 100R1 specifcation
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius
Weight
Parkrimp
Field
Attachable
inch mm inch mm psi
MPa inch mm lbs/ft kg/m 43 Series 42 Series
482TC/ST-4 1/4 6,3 0.53 14 3250 22,7 2 50 0.16 0,24
•
•
482TC-5 5/16 8 0.59 15 3250 22,7 2-1/4 55 0.18 0,27
•
•
482TC/ST-6 3/8 10 0.69 17 3000 21,0 2-1/2 65 0.23 0,34
•
•
482TC/ST-8 1/2 12,5 0.82 21 2500 17,5 3-1/2 90 0.29 0,43
•
•
482TC/ST-10 5/8 16 0.94 24 2000 14,0 4 100 0.33 0,49
•
•
482TC/ST-12 3/4 19 1.09 28 1750 12,2 4-3/4 120 0.42 0,63
•
•
482TC/ST-16 1 25 1.41 36 1275 8,8 6 150 0.63 0,94
•
•
482TC
Hydraulic – Tough Cover
SAE 100R1 TYPE AT, J1942 / ISO 1436-1 TYPE 1SN / EN853 TYPE 1SN / USCG H
482ST
Hydraulic – Super Tough Cover
SAE 100R1 TYPE AT / ISO 1436-1 TYPE 1SN / EN853 TYPE 1SN
• Field Attachable Assembly Instructions are i
n Section B
with each Fittings Series.
• See
Section C f
or Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Application:
Petroleum base
hydraulic fuids and lubricating
oils.
Inner Tube:
Synthetic rubber.
Reinforcement:
One braid steel
wire.
Cover:
Synthetic rubber abrasion
resistant, MSHA accepted.
Temperature Range:
-40°F to
+212°F (-40°C to +100°C).
Fittings:
43 Series - pg. B-27.
42 Series - pg. B-173.
Catalog 4400 US
Hydraulic Industry Standard
Hydraulic Hose:
482TC/ST
A-27
A
