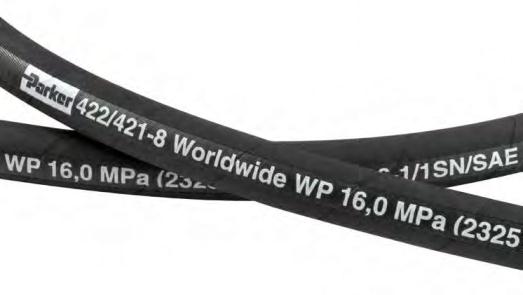

422
Hydraulic
Parker’s worldwide hose line is designed to accommodate global customer
requirements. Manufactured to strict international specifcations, 422 hose
offers customers consistency of performance combined with improved
availability anywhere in the world.
• One-wire braid hose design manufactured to international
specifcations (ISO 1436-1 Type 1SN)
• Increased working pressures for improved reliability and
expanded applications versus standard SAE 100R1
• Synthetic rubber inner tube for greater fuid compatibility and
bio-oil resistance
• EN853 Type 1SN
422
Hydraulic Worldwide
ISO 1436-1 TYPE 1SN/SAE 100R1 TYPE AT, J1942 / EN 853 TYPE 1SN / USCG HF / DNV / ABS
Application:
Petroleum base
hydraulic fuids and lubricating oils.
Inner Tube:
Synthetic rubber.
Reinforcement:
One braid steel
wire.
Cover:
Synthetic rubber.
Temperature Range:
-40°F to
+212°F (-40°C to +100°C).
Fittings:
43 Series - pg. B-27.
42 Series - pg. B-173.
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Vacuum
Rating Parkrimp
Field
Attachable
inch mm inch mm psi MPa inch mm lbs/ft kg/m
inches
kPa
of Hg 43 Series 42 Series
422-4 1/4 6,3 0.53 13 3250 22,5 4 100 0.16 0,24 24 81
•
•
422-5 5/16 6,3 0.59 15 3125 21,5 4-1/2 115 0.18 0,27 24 81
•
•
422-6 3/8 10 0.68 17 2600 18,0 5 130 0.23 0,34 24 81
•
•
422-8 1/2 12,5 0.81 21 2325 16,0 7 180 0.29 0,43 24 81
•
•
422-10 5/8 16 0.94 24 1875 13,0 8 200 0.33 0,49 24 81
•
•
422-12 3/4 19 1.09 28 1525 10,5 9-1/2 240 0.42 0,63 24 81
•
•
422-16 1 25 1.41 36 1275 8,8 12 300 0.63 0,94 24 81
•
•
422-20 1-1/4 31,5 1.79 45 900 6,3 16-1/2 420 0.8 1,19 18 61
•
422-24 1-1/2 38 2 51 725 5,0 20 500 1 1,49 18 61
•
422-32 2 51 2.54 64 575 4,0 25 630 1.5 2,24 18 61
•
•
Hg
• Field Attachable Assembly Instructions are i
n Section B
with each Fittings Series.
• See
Section C f
or Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Hydraulic Hose:
422
Hydraulic Industry Standard
Catalog 4400 US
A-26
