722TC
Hydraulic

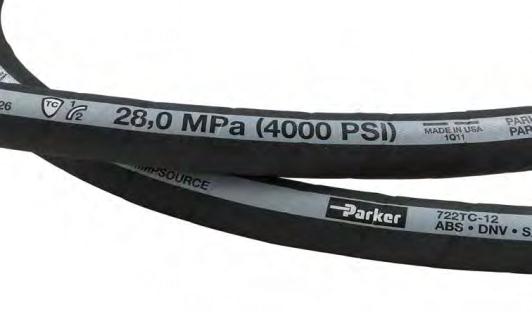

722TC hose was designed for high performance. Its resilient 4-wire spiral construction
and Parker’s leading Tough Cover® provide unmatched application usage. 722TC hose
provides SAE 100R12 performance enabling its use in a wide variety of applications.
It is also one-half the bend radius of SAE 100R12 hose, making it easy to install and
reducing the amount of hose needed and its synthetic rubber inner tube provides a
wider range of fuid compatibility.
• Half the bend radius of SAE 100R12 hose, reducing the amount
of hose needed to make your connection
• 4-spiral construction for longer lasting hose in high impulse,
heavy duty cycle applications
• SAE 100R12 performance to cover a wide
variety of applications
• Synthetic rubber inner tube provides a wider range of
fuid compatibility
722TC
Hydraulic – Tough Cover
SAE 100R12, J1942 / ISO 3862-1 TYPE R12 /
TYPE R12 / USCG HF / DNV / ABS
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight Parkrimp Parkrimp
71 Series inch mm inch mm psi MPa inch mm lbs/ft kg/m 43 Series
722TC-6 3/8 10 0.80 20 4000 28,0 2-1/2 65 0.40 0,60 •
722TC-8 1/2 12,5 0.93 24 4000 28,0 3-1/2 90 0.54 0,80 •
722TC-10 5/8 16 1.06 27 4000 28,0 4 100 0.74 1,10 •
722TC-12 3/4 19 1.21 31 4000 28,0 4-3/4 120 0.94 1,40 •
722TC-16 1 25 1.50 38 4000 28,0 6 150 1.34 1,99 •
722TC-20 1-1/4 31,4 1.84 46 3000 21,0 8-1/4 210 1.74 2,59 •
722TC-24 1-1/2 38 2.07 53 2500 17,5 10 250 2.01 2,99 •
722TC-32 2 51 2.59 66 2500 17,5 12-1/2 320 2.75 4,09 •
Application: Petroleum based
hydraulic fuids, lubricating oils.
Inner Tube: Synthetic rubber.
Reinforcement: Four spiral
steel wire.
Cover: Synthetic rubber, MSHA
accepted.
Temperature Range: -40ºF to
+257ºF (-40ºC to 125ºC).
Fittings: 43 Series, sizes -6 to
-20 - pg. B-27.
71 Series, size -24 to
-32 - pg. B-71.
• SeeSection Cfor Parkrimp Assembly Instructions.
• Temperature Range of other media listed inSection E.
