351TC/ST
351TC – Braided construction offering 4000 psi is more fexible
than its standard spiral counterpart.
• Specifcally engineered TC and ST covers prolong hose life
and minimize downtime
• 4000 psi constant working pressure in all sizes
• Exceeds SAE 100R19, J517 specifcations
Hydraulic
• See
Section C
for Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Application:
Petroleum base
hydraulic fuids and lubricating
oils.
Inner Tube:
Synthetic rubber.
Reinforcement:
Two braids
steel wire.
Cover:
Synthetic rubber
abrasion resistant, MSHA
accepted.
Temperature Range:
-40°F to
+212°F (-40°C to +100°C).
Fittings
:
43 Series - pg. B-27.
Part
Number
Hose I.D.
Hose O.D.
Working
Pressure
Minimum
Bend Radius
Weight
Parkrimp
inch mm inch mm psi
MPa inch mm lbs/ft kg/m 43 Series
351TC/ST-4 1/4 6,3 .51 13 4000 28 2 50 0.20 0,30
•
351TC/ST-6 3/8 10 .67 17 4000 28 2-1/2 65 0.28 0,42
•
351TC/ST-8 1/2 12,5 .80 20 4000 28 3-1/2 90 0.35 0,52
•
351TC/ST-10 5/8 16 .93 24 4000 28 4 100 0.44 0,66
•
351TC/ST-12 3/4 19 1.09 28 4000 28 4-3/4 120 0.58 0,86
•
351TC
Hydraulic – Tough Cover
SAE 100R19, J517 – Constant Working Pressure

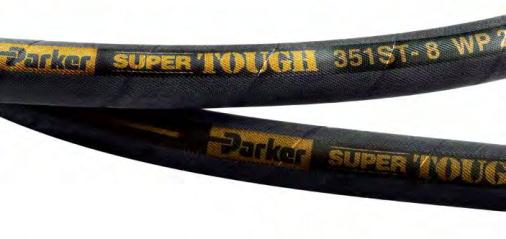

351ST
Hydraulic – Super Tough Cover
SAE 100R19, J517 – Constant Working Pressure
Catalog 4400 US
Constant Working Pressure:
4000 PSI
Hydraulic Hose:
351TC/ST
