• APPEARANCE/CONSTRUCTION:

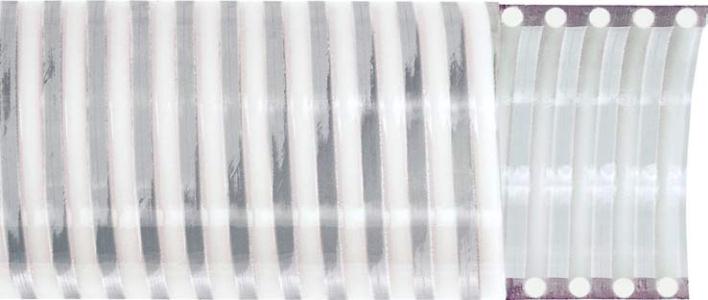

Clear PVC with white helix.
Smooth wall and interior.
• BENEFITS:
– Highly versatile and durable.
– Smooth interior prevents
material blockage.
– Clear wall allows easy inspection
of material flow.
• GENERAL APPLICATIONS:
– General suction for water &
light chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
3/4" thru 6"
100ft.
8" and above
20' 25' 30'
• APPEARANCE/CONSTRUCTION:

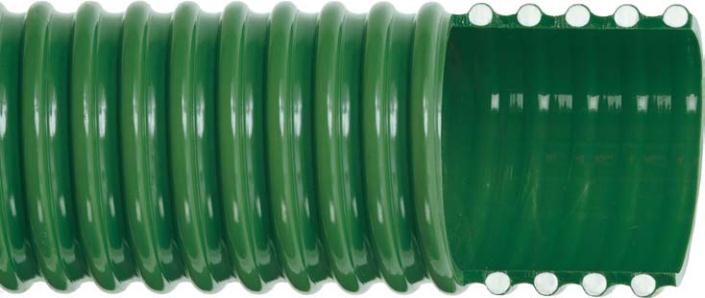

Green PVC with white helix.
Corrugated cover, smooth interior.
• BENEFITS:
– Good combination of durability
and flexibility.
– Smooth interior prevents
material blockage.
• GENERAL APPLICATIONS:
– General suction for water &
light chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
1-1/2" thru 6"
100ft.
8" and above
20' 25' 30'
PVC GREEN STANDARD
SUCTION HOSE
SPIRALITE
®
120
PVC CLEAR STANDARD
SUCTION HOSE
®
115
1.01 1.27 1.53 1.82 2.36 2.90 3.44 4.52 5.65 6.80 8.95 11.34 13.39
100 90 90 90 70 65 55 50 45 45 40 40 35
42 42 42 42 37 32 28 28 -
-
-
-
-
28 28 28 28 28 28 28 28 28 28 28 28 26
2 3 4 5 6 8 9 13 21 24 35 41 53
300 270 270 270 210 195 175 150 135 135 120 120 105
.20 .27 .34 .47 .66 .92 1.20 1.87 3.00 4.42 6.81 12.10 15.30
NOMINAL SIZE
inch
3
/
4
" 1" 1
1
/
4
" 1
1
/
2
" 2" 2
1
/
2
" 3" 4" 5" 6" 8" 10" 12"
inch
psi
max
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
W.P. AT 140°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
10" 12"
1.87 2.41 2.98 3.54 4.65 6.98 9.14 11.30 13.31
50 40 40 35 35 35 35 30 25
28 28 28 28 28 28 28 21 15
3
4
5
6
8 15 18 28 36
150 120 120 105 105 105 105 90 75
.38 .58 .79 1.07 1.70 4.26 6.57 9.37 11.11
NOMINAL SIZE
inch 1
1
/
2
" 2" 2
1
/
2
" 3"
4"
6"
8"
inch
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
