23540 TELO AVENUE, TORRANCE, CA 90505 • PHONE: (310) 539-1822 • (323) 775-4001 • (800) 421-5196 • FAX: (310) 539-5826
SPIRALITE®000
®000
PVC SPECIAL GREEN STANDARD
SUCTION HOSE
113
PVC SPECIAL GRAY STANDARD
SUCTION HOSE
111

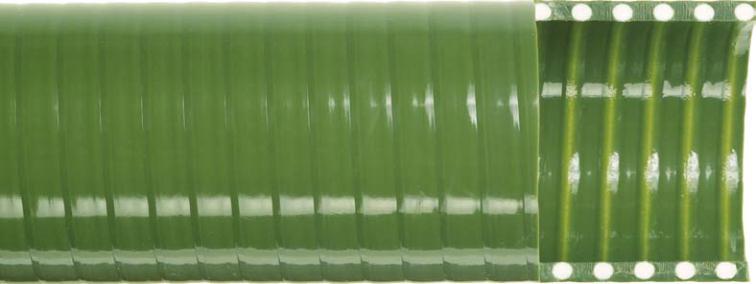

• APPEARANCE/CONSTRUCTION:
“Special” Green PVC tube with white
PVC helix. Smooth wall and interior.
• BENEFITS:
– Excellent blend of economy
and quality.
– Smooth interior prevents
material blockage.
• GENERAL APPLICATIONS:
– General suction for water &
light chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
3/4" thru 6" 100ft.
8" 20' 25' 30'
5" 6"
1.00 1.25 1.51 1.81 2.34 2.88 3.42 4.49 5.58 6.80 8.94
100 90 70 70 60 60 50 45 45 45 40
28 28 28 28 28 28 28 28 28 28 28
2 3 4 5 6 8 9 13 21 24 40
300 270 210 210 180 180 150 135 135 135 120
.20 .26 .32 .45 .63 .90 1.16 1.82 3.00 4.56 7.05
NOMINAL SIZE inch 3/4" 1" 1 1/4" 11/2" 2" 21/2" 3" 4" 5" 6" 8"
inch
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
1.01 1.27 1.53 1.82 2.36 2.90 3.44 4.52 5.65 6.80
100 90 90 90 70 65 55 50 45 45
28 28 28 28 28 28 28 28 28 28
2 3 4 5 6 8 9 13 21 24
300 270 270 270 210 195 165 150 135 135
.20 .27 .36 .47 .66 .92 1.20 1.87 3.00 4.56
NOMINAL SIZE inch 1" 1 1/4" 3/4" 11/2" 2" 21/2" 3" 4"
inch
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
2

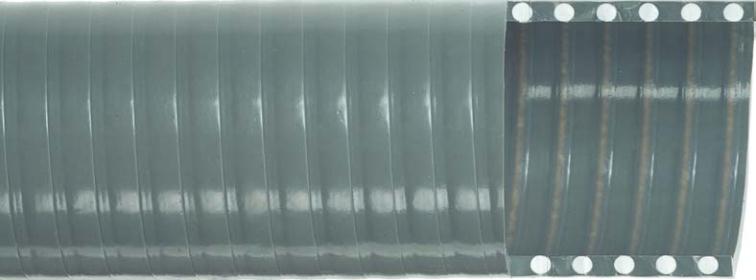

• APPEARANCE/CONSTRUCTION:
Gray PVC with white helix.
Smooth wall and interior.
• BENEFITS:
– Excellent blend of economy
and quality.
– Smooth interior prevents
material blockage.
• GENERAL APPLICATIONS:
– General suction for water &
light chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
3/4" thru 6" 100ft.
