SPIRALITE®125
®124-PS
• APPEARANCE/CONSTRUCTION:
Clear PVC with white helix.
Corrugated cover, smooth interior.
• BENEFITS:
– Specially sized to fit over pipe.
– Smooth interior prevents
material blockage.
– Clear wall allows easy inspection
of material flow.
• GENERAL APPLICATIONS:
– Landfill gas recovery.
– Water/light chemical suction
and transfer.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
2-3/8" thru 6-5/8" 100ft.
8-5/8" 20' 25' 30'
• APPEARANCE/CONSTRUCTION:
Clear PVC with white helix.
Corrugated cover, smooth interior.
• BENEFITS:
– Good combination of durability
and flexibility.
– Smooth interior prevents
material blockage.
– Clear wall allows easy inspection
of material flow.
• GENERAL APPLICATIONS:
– General suction for water &
light chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
3/4" thru 6" 100ft.
8" thru 12" 20' 25' 30'
8" also in 50'

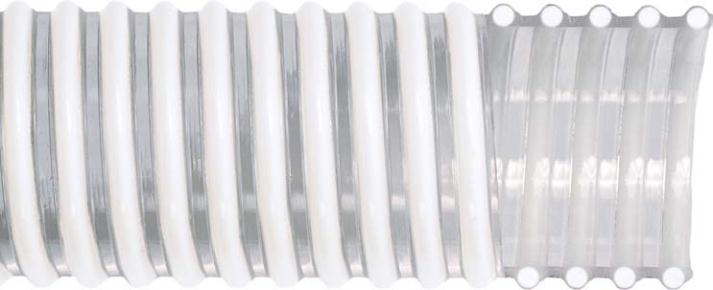

PVC CLEAR CORRUGATED
SUCTION HOSE
PVC PIPE-SIZED CORRUGATED
SUCTION HOSE
.99 1.26 1.61 1.86 2.44 2.98 3.54 4.65 5.73 6.98 9.14 11.30 13.27
50 35 50 50 40 40 35 35 30 35 35 30 25
28 28 28 28 28 28 28 28 28 28 28 21 15
1 2 3 3 4 5 6 8 11 15 18 28 36
150 105 150 150 120 120 105 105 90 105 105 90 75
.11 .14 .31 .37 .57 .77 1.04 1.65 2.34 4.08 6.34 9.10 10.14
NOMINAL SIZE inch 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4" 5" 6" 8" 10" 12"
inch
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
2.85 4.15 5.26 7.60 9.80
40 35 30 30 30
28 28 28 28 28
4 7 9 17 22
120 95 90 90 90
.72 1.19 1.85 4.41 6.67
NOMINAL SIZE inch 23/8" 31/2" 41/2" 65/8" 85/8"
inch
psi
in/HG
inch
psi
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. BP
AT 68°F*
lbs./ft. APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
