OETIKER
Worm Drive Clamps A B C
Product Group 130
Features
• Highly flexible screw clamp with numerous applications
• Reusable
• Hexagon-head screw with slot for screwdriver
• Fast, simple and safe installation
• Screw Clamps B and C as toggle clamps for simple operation
• Screw Clamp C is alternative with wing screw – a tool
integrated in the clamp
OETIKER Worm Drive Clamps A, B and C are suitable for a multitude
of applications, for example, in automobile manufacturing, in
construction, in horticulture and farming, in ship and boat building,
for general workshop use, etc.
Worm Drive Clamps B and C
These precision Worm Drive Clamps have a toggle closure for easier
handling. Strip clamp made of perforated high-tensile material, with
hardened precision screw (2 mm pitch on Type B and 3 mm for Type C).
Condition at time of delivery
Rolled up but not screwed on.
Material
– 130 Strip and body:
Rust-resistant Chromium Steel, Material no. 1.4016 / UNS S43000
Screw:
Steel, zinc-plated and chromated blue
Size range Width x Thickness of strip
9.0 - 127.0 mm 8.0 x 0.7 mm (Clamp B)*
14.0 - 127.0 mm 12.0 x 0.7 mm (Clamp C)*
* Further diameters available on request
Installation
Installation instructions available on request.
Worm Drive Clamp A
Highly flexible Worm Drive Clamp made from perforated strip with high
tensile strength. Closed body with hardened precision screw (2 mm pitch).
Precise, circular support at the closure.
Condition at time of delivery
Strip closed, screw set to largest diameter.
Material
– 130 Strip and body:
Rust-resistant Chromium Steel, Material no. 1.4016 / UNS S43000
Screw:
Steel, zinc-plated and chromated blue
Size range Width x Thickness of strip
8.0 - 82.0 mm 8.0 x 0.7 mm
Installation
Installation instructions available on request.
Clamp A
Clamp B
Clamp C
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.

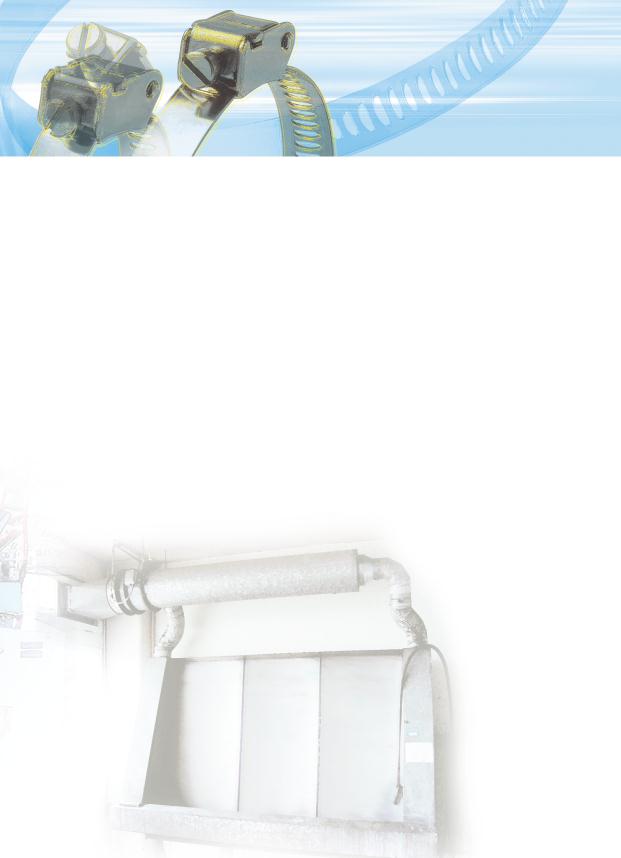

Application Example
Extraction equipment
