1-Ear Clamp with Mechanical Interlock
Product Group 105 & 155
www.oetiker.com 08901456 Rights to make technical changes in the interests of further development reserved
®
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.
Features
• Narrow band – 7mm
• Lightweight
• Specially formed strip edges reduce the risk of damage to
the part being clamped
• Mechanical interlock allows use of pre-coated materials
• Tampering is visible
• Fast and simple to install
Economical quality clamp for low-pressure applications. Developed
for a variety of applications in the automotive industry, general
industry and for applications involving synthetic tubing.
The mechanical interlock also eliminates the need for spot welding at
the joint, which would then make it vulnerable to corrosion.
Material
– 105 Galvanized or zinc-plated steelband
– 155 Stainless Steel, Material no. 1.4301 / UNS S30400
Size range Width x Thickness
10.5 - 116 mm 7.0 x 0.6 / 0.75 mm
Customer-specific sizes available on request.
Installation
See page 27 and Technical Data Sheet.

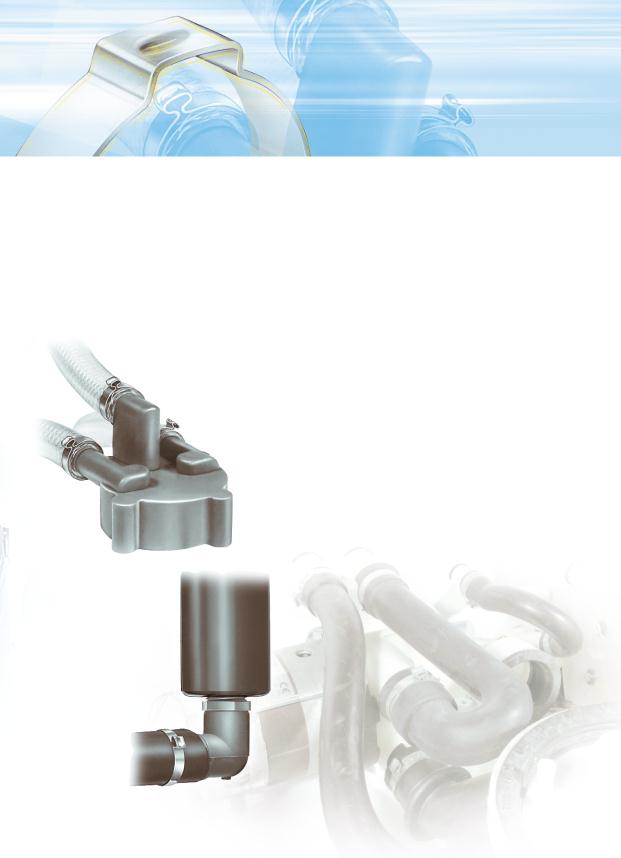

Application Example
Irrigation systems
Application Example
Dispensing Equipment
