OETIKER
Adjustable Clamps
Product Group 159 & 163
OETIKER Adjustable Clamps with Radial Guiding are suitable for numerous
industrial applications.
Their special closure technology makes the diameter of these clamps
adjustable, so that one clamp covers a relatively large clamping range.
During the closure process, there is optimum radial guidance for the
inner strip. At the same time, the overlapping below the ear prevents
the material of the hose being caught. This results in effective, powerful
all-round sealing.
To meet particular diameter requirements, the pre-selected engagement
window position of the Adjustable Clamp with Radial Guiding can be
customer or application specific.
Using OETIKER Adjustable Clamps, a wider clamping range can be
covered by having a larger number of engagement positions.
Both variants of the OETIKER Adjustable Clamp are particularly suitable
for securing Neoprene CVJ boots on drive shafts and steering boxes.
For CVJ boots made of thermoplastic material, OETIKER Stepless® Ear
Clamps – Heavy Duty Range should be used.
Material
– 159 & 163 Stainless Steel, Material no. 1.4301 / UNS S30400
Adjustable Clamps
Size range Width x Thickness
25.0 - 50.0 mm 7.0 x 0.8 mm*
40.0 - 110.0 mm 7.0 x 0.8 mm*
Adjustable Clamps with Radial Guiding
30.0 - 116.0 mm 7.0 x 0.6 mm
72.0 - 132.0 mm 9.0 x 0.6 mm
*Diameter range covered by a single clamp
Installation
See page 27. Further installation instructions available on request.
Features
• Clamps can be adjusted to several nominal diameters
• Suitable for securing Neoprene gaiters or other soft materials
• Inner ring with radial guidance for effective and powerful
all-round sealing
• Clamp suitable for many different applications
• Specially formed strip edges reduce the risk of damage to
the part being clamped
• Simple, quick axial or radial installation
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.
PG 163 – Adjustable Clamps with Radial Guiding PG 159 – Adjustable Clamps

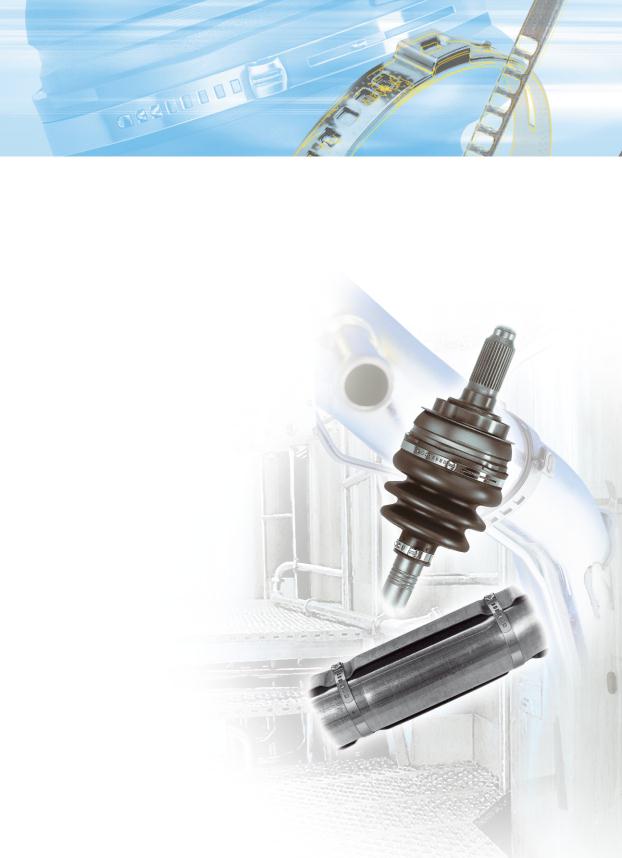

Application Example
Flexible attachment of
additional components
Application Example
After-market alternative
for drive shafts
