Features
• Innovative, economical, high-quality clamp
• Miniature sizes, from 4.8 mm diameter
• Safe connections for low-pressure applications
• Low installed height – minimal space requirement
• Lightweight
• Specially formed strip edges reduce the risk of damage to
the part being clamped
• Simple, safe installation
12 www.oetiker.com Rights to make technical changes in the interests of further development reserved 08901456
®
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.
The Clamp ER is an innovative and economical high-quality clamp for
low-pressure applications on materials that are slightly compressible.
It has been developed for a very wide range of applications in industry,
vehicles and medical equipment.
As a result of their low installed height, OETIKER Clamps ER require
minimal space. Their low weight and quick and simple installation
makes them the optimum method of connection for numerous industrial
applications.
Available in very small diameter steps, and in customer and application
specific versions, they can be closed with special OETIKER Installation
Tools.
Note on ordering:
OETIKER Clamps ER are marked with the nominal, closed diameter on
the clamp strip, e.g. 6 – for a clamp with a closed diameter of 6.0 mm.
Material
– 194 Stainless Steel, Material no. 1.4310 / UNS S30100
Size range Width x Thickness
4.8 - approx. 25 mm 6.5 x 0.25 mm
To test this product for suitability and selection of the right diameter,
please send us the relevant sample parts and comprehensive
information about the application.
Installation
See Technical Data Sheet.
OETIKER
Clamps ER
Product Group 194

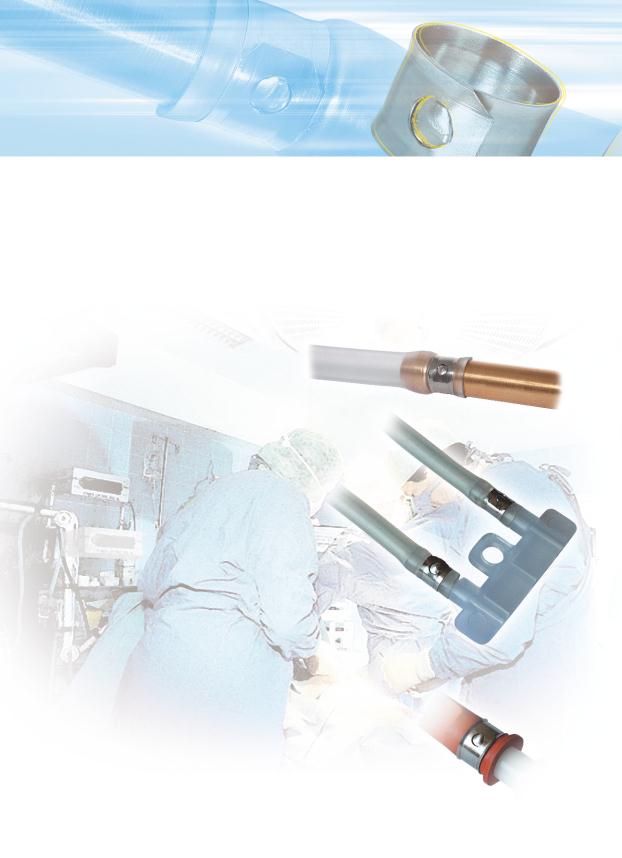

Application Example
Medical equipment
Application Example
Vehicle industry –
turbocharger systems
