OETIKER
Multi Crimp Rings
Product Group 150
www.oetiker.com 08901456 Rights to make technical changes in the interests of further development reserved
Features
• Constant, uniform, circumferential compression
• Aluminium model – lightweight
• Low Profile-corresponding to gauge of material
• No imbalance on rotating parts
• Specially formed strip edges reduce the risk of damage to
the part being clamped
• Made to customer specifications if required
• Suitable for use as pre-assembled clamp connection
• Special shrinking device available on request
OETIKER Multi Crimp Rings are made from band steel, have a T-lock
and their low profile makes them particularly suitable for large
rotating parts, as they have no protruding parts to obstruct the space
surrounding the hose.
OETIKER Multi Crimp Rings must only be closed using tooling, which
has been specially developed for this purpose. The design of this
tooling allows several Multi Crimp Rings to be closed simultaneously.
As well as their application for use on rotating components and airbag
systems, OETIKER Multi Crimp Rings are suitable for fixing boots on
steering gears, shock absorbers, coolant systems and ventilation
systems as the profile of these rings is only limited by their material
thickness.
Material
– 150 Stainless Steel, Material no. 1.4301 / UNS S30400
– Option: aluminium, Material no. 3.3535
Size range
5.0 - 120.0 mm
Customer-specific sizes available on request.
Installation
See Technical Data Sheet.
®
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.

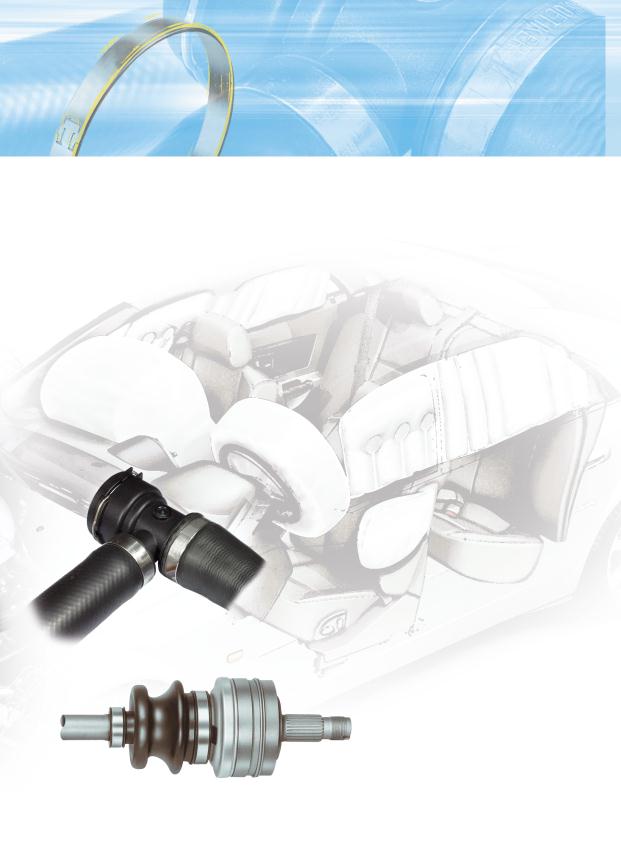

Application Example
Cooling system connections
Spiral-welded
In diameters = 50 mm, OETIKER Multi
Crimp Rings are available manufactured
from spiral-welded stainless steel tube.
Ideal for industrial applications, vehicles
and medical equipment.
Spiral-welded
Application Example
Drive shafts
