OETIKER
Stepless® Low Profile Clamps 192
Product Group 192
www.oetiker.com Rights to make technical changes in the interests of further development reserved 08901456
OETIKER Stepless® Low Profile Clamps 192, with tolerance compensation
features accommodate dimensional variations in the parts being
clamped, also when applying high radial forces. In addition, the flexible
tolerance-compensation elements, consisting of up to six convolutes
in the strip material are designed to allow for minor diameter changes
caused by temperature variations and / or the effects of vibration.
Besides rotating applications, OETIKER Stepless® Low Profile Clamps
192 are suitable for securing the dust covers on shock absorbers,
cooling and heating systems, air-springing systems, etc. The Product
Group 192 is customised for specific applications and is produced
with small diameter graduations. They are installed using special
OETIKER tooling to ensure optimum connections in numerous industrial
applications.
Note on ordering:
Low Profile Clamps 192 are identified with the nominal closed diameter,
e.g. 69.5 – for a closed diameter of 69.5 mm.
Material
– 192 Stainless Steel, Material no. 1.4301 / UNS S30400
Size range Width x Thickness Tol. Element
28.0 - 120.5 mm 10.0 x 0.8 mm 3-times
34.0 - 120.5 mm 10.0 x 0.8 mm 6-times
Installation
See Technical Data Sheet.
Features
• Tolerance-compensation convolutes allow for variations in
compontent tolerances
• Designed to allow for minor diameter changes caused by
temperature variations and/or the effects of vibrations
• 360° Stepless ® Design – no steps or overlaps in inner
circumference
• Low installed height – minimum space requirement
• Minimal imbalance on rotating parts
• Specially formed strip edges reduce the risk of damage to
the part being clamped
• Simple, safe installation
®
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.

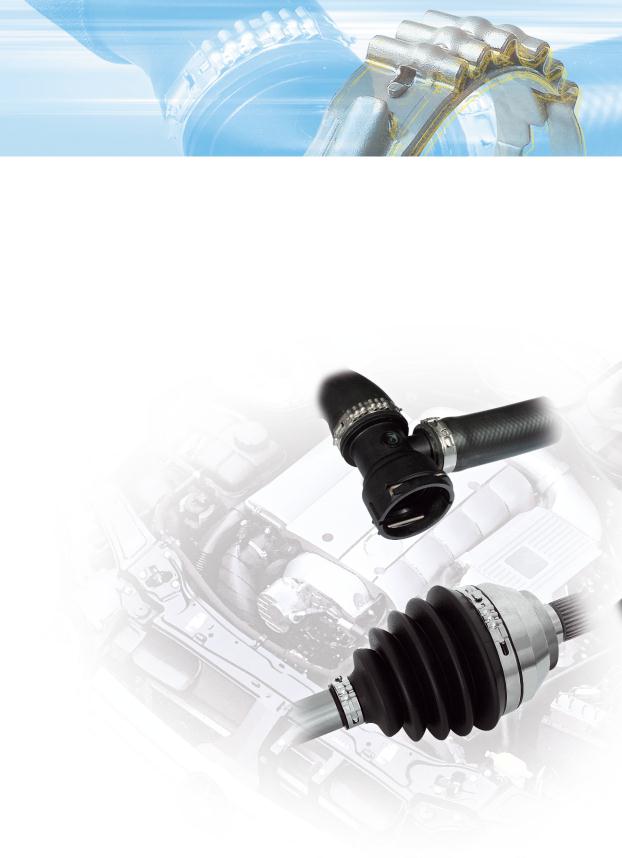

Application Example
Cooling system connections
Application Example
Drive shafts
