Unique device for measuring o-rings up to 8” inside diameter. The base of the cone is used
to determine the cross section of the o-ring. Then, for o-rings 1/4” to 3” inside diameter, the
ring is simply dropped over the cone, and the size is read above the o-ring. For o-rings from 3” to
8” inside diameter, the tape is simply expanded inside the o-ring, and the size is read directly from
the tape. All size numbers correspond to industry ARP standard size series.
Related O-Ring Items
Style ORC O-Ring Measuring Cone andTape
Laminated flip-chart pictures actual o-ring sizes up to 8” inside diameter. The o-ring is simply
placed on the chart and lined up with the correct inside diameter and cross section. The
tandard size is then read directly from the chart.
Style ORCH O-Ring Sizing Chart
Style ORB Recloseable Plastic Bags
Plain, recloseable plastic bags. Ideal for re-packaging o-rings.
Color Dimensions Thickness Part Number
Clear 4" x 6" 2 mil ORB2M4x6
Clear 6" x 8" 2 mil ORB2M6x8
Clear 8" x 10" 2 mil ORB2M8x10
Clear 10" x 12" 4 mil ORB4M10x12
Black 6" x 6" 3 mil ORBB3M6x6
Black 8" x 8" 3 mil ORBB3M8x8
Black 12" x 12" 3 mil ORBB3M12x12
Similar to Style ORC, but will measure o-rings up to 5 5/8” inside diameter on the cone.
No tape is included.
Style ORCB Large O-Ring Measuring Cone
Measures metric 0-rings on one side and standard o-rings on the other. Measures metric o-
rings from 70 mm to 254 mm inside diameter and standard o-rings from 3 1/8” to 10” inside
diameter.
Style ORMMT MeasuringTape for Metric O-Rings
Slide gauge for measuring standard O-Rings up to 13” inside diameter.
Style ORSG O-Ring Slide Gauge

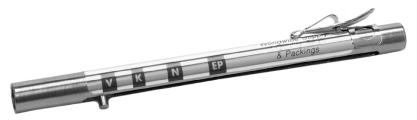

Used to verify the material composition of 60-80 durometer O-RIngs that
are known to be either Viton® , Kalrez®, Nitrile, or EPDM. Stainless steel
tubular construction.
Style ORID O-Ring Identifier
