H
YDRAULIC
Part # A Size B
Inches
C Inches Rated Flow
gpm
1000-2-5 or 65 1/4 NPT 2.44 .87 6 ----
1000-3-5 or 65 3/8 NPT 2.87 .95 10 ----
1000-4-5 or 65 1/2 NPT 3.50 1.14 18 ----
1000-6-5 or 65 3/4 NPT 4.25 1.50 30 ----
1000-8-5 or 65 1 NPT 5.12 1.69 36 ----
1000-10-5 or 65 1-1/4 NPT 5.56 2.40 50 ----
1000-12-5 or 65 1-1/2 NPT 5.56 2.56 60 ----
1001-4-5 or 65 7/16-20 SAE 2.56 .87 6 ----
1001-6-5 or 65 9/16-20 SAE 2.91 .94 10 ----
1001-8-5 or 65 3/4-16 SAE 3.74 1.18 18 ----
1001-12-5 or 65 1-1/6-12 SAE 4.29 1.50 30 ----
1001-16-5 or 65 1-5/16-12 SAE 5.00 1.81 36 ----
1001-20-5 or 65 1-5/8-12 SAE 5.20 2.41 50 ----
1001-24-5 or 65 1-7/8-12 SAE 5.20 2.56 60 ----
HARD SEAT CARBON STEEL CONSTRUCTION - 5lb or 65lb Cracking Pressure Available
Rated Pressure: Sizes 2 thru 8 - 5000 psi / Sizes 10 thru 24 - 3000 psi
HYDRAULIC ACCESSORIES CHECK V ALVE
B
C
A ( NPT Female both
ends )
• Available w/ NPT or
SAE threads

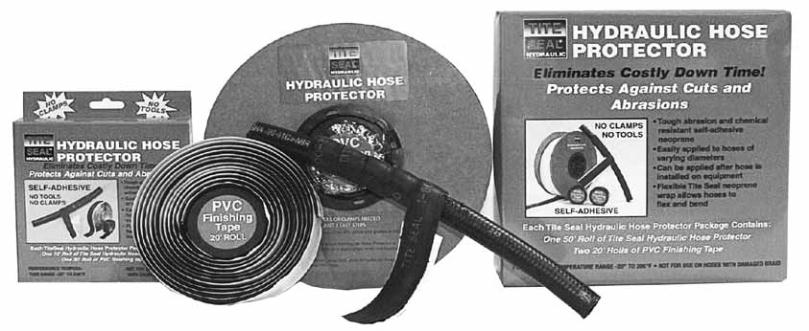

HYDRAULIC HOSE PROTECTOR
• Tough abrasion resistant self-adhering neoprene wrap
• Protects against cuts and abrasions
• Can be easily applied to hoses of varying diameters,
even after hose is installed on equipment.
• Covers and protects wear areas
• Chemical resistant neoprene resists oil, gasoline, and
solvents
• Flexible self-adhering wrap material allows hoses to
flex and bend.
• Wrap can also be used to bundle hoses and cables.
• Performance temperature range -20°F to 200°F
MATERIAL COVERAGE CHART
12' Roll 50' Roll 300' Roll
3/8" Hydraulic Hose I.D. 52" 217" 1,302"
1/2" Hydraulic Hose I.D. 40" 167" 1,002"
3/4" Hydraulic Hose I.D. 29" 121" 726"
1" Hydraulic Hose I.D. 24" 100" 600"

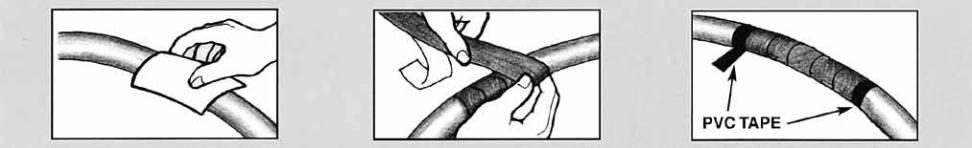

Step 1: Clean hose of all dirt, grime
and grease in the application area.
Step 2: Remove paper backing as
Hose Protector is applied. Wrap tightly
at a slight angle while overlapping in
notched area.
Step 3: To finish, wrap both ends of Hy-
draulic Hose Protector with PVC tape.
Part # Description
MHP112 12' Kit ----
MHP150 50' Kit ----
MHP1300 300' Kit ----
