371
H
YDRAULIC
Part # Pitch Inches Coil
Wt.
Coil
Lgth
Black Yellow Spiral Size (C) OD (A) ID (B) lbs. feet
25C100B 25C100Y 1/4" (#4) HYDRAULIC HOSE 0.47 2/3 0.50 4.0 100 ----
38C100B 38C100Y 3/8" (#6) HYDRAULIC HOSE 0.78 3/4 0.65 6.0 100 ----
50C100B 50C100Y 1/2" (#8) & 5/8" (#10) HYDRAULIC HOSE 0.98 1 0.80 10.1 100 ----
75C100B 75C100Y 3/4" (#12) HYDRAULIC HOSE 0.87 1-1/4 1.10 12.8 100 ----
100C100B 100C100Y 1" (#16) & 1-1/4" (#20) HYDRAULIC HOSE 1.39 1-3/5 1.40 20.1 100 ----
• WHAT IS SPIRAL WRAP: Spiral wrap is the proven way to protect hose, wire, cable , etc... against chaffing, rubbing,
crushing, ultraviolet and other environmental hazards that cause premature failure.
• COST SAVINGS: Used effectively on all types of hoses, ropes, wires and cables. Users have realized a dramatic increase
in serviceable life and reduction in costly repairs and down time.
• MATERIAL: Heavy wall, high Grade HDPE, polyethylene resin, high tensile strength, thermal plastic.
• RESILIENCE: Has a high resistance against ultra violet weathering and a wide temperature range. (-60 - + 175°F)
Proprietary extrusion method gives the final product smooth round, edges, which are non-abrasive,
greater strength & durability.
* More sizes & colors available.
* Shipped in 100'FT coils only.

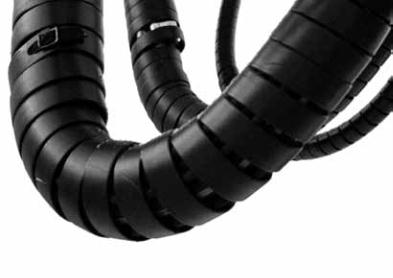

SAFEGUARD SPIRALS - PROTECTION FOR HYDRAULIC HOSES
ACCESSORIES SAFEGUARD SPIRALS

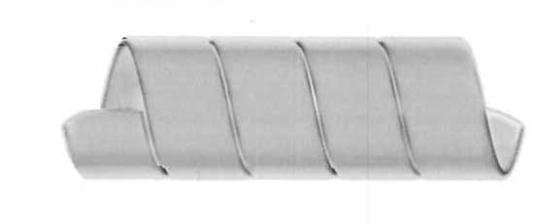

C
A B
