369
H
YDRAULIC

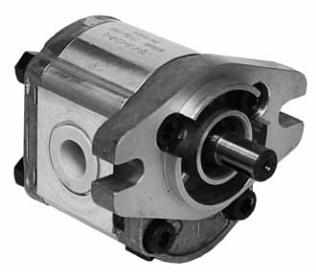

MODEL # MGP-F10
• All Aluminium construction.
• 7 Displacement sizes from 0.07 to 0.37 cu. in/rev.
• Mounting flange is SAE AA-2 bolt.
• Ports are SAE-8 inlet and SAE-6 outlet.
• Drive shaft is a 1/2 inch straight shaft with 1/8 key.
Part # Displacement
cu.in/rev
PSI Speed RPM Weight
Lbs Rated Max
MGP-F10-13 0.07 3625 2000 3000 2.02 ----
MGP-F10-20 0.12 3625 2000 3000 2.31 ----
MGP-F10-27 0.16 3625 2000 3000 2.68 ----
MGP-F10-34 0.20 3625 2000 3000 2.99 ----
MGP-F10-41 0.25 3625 2000 3000 3.34 ----
MGP-F10-51 0.31 3625 2000 3000 3.78 ----
MGP-F10-61 0.37 3625 2000 3000 4.18 ----
Recommended working conditions:
• Filtration 25 micron or better.
• Oil Viscosity 6 to 200 cSt.
• Inlet pressure 12 to 32 psi abs.
• Oil Temperature -25 to 55 degrees C (-12 to 175 F°).
• Ambient -22 to 55 C° (-8 to 130 F°).

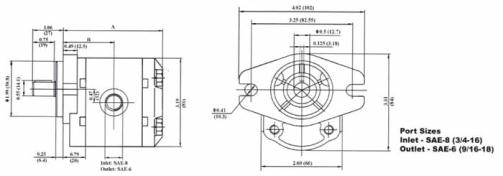

INSTALLATION DATA
Part # A B
Millimeters Inches Millimeters Inches
MGP-F10-13 82 3.23 42 1.65
MGP-F10-20 84 3.3 43 1.69
MGP-F10-27 86 3.39 44 1.73
MGP-F10-34 88 3.46 45 1.77
Part # A B
Millimeters Inches Millimeters Inches
MGP-F10-41 90 3.54 46 1.81
MGP-F10-51 93 3.66 47.5 1.87
MGP-F10-61 96 3.78 49 1.93
ACCESSORIES HYDRAULIC GEAR PUMP
ORDERING INFORMATION
MGP
Aluminum
Gear Pump
F10
High
Pressure
Series
16
Displacement
cm3/rev
(see chart)
13/20/27/34
41/51/61
P
Drive
Shaft
P-5/8 Dia
Straight
P1-3/4 Dia
Straight
S9-Spline 9 tooth
C
Rotation
Direction
C-Clockwise
A-Counter Clockwise
(viewed from drive shaft
end)
