365
H
YDRAULIC
H
YDRAULIC
H
OSE
& F
ITTINGS
W
IRE
B
RAID

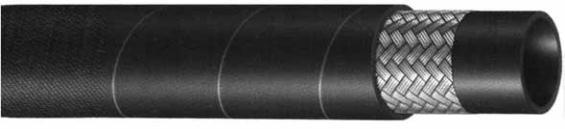

SAE100 R17
Construction
• Tube:
Oil resistant Synthetic Rubber.
•
Reinforcement:
one (upto 1/2") or two (from 5/8") high tensile steel wire braids.
•
Cover:
Oil, weather and abrasion resistant Synthetic Rubber.
• Hose is shipped in bundles.
• Reel $ available upon request.
Application and Temperature Range
• Petroleum base hydraulic fluids and lubricating oils within a temperature range of -40°F to +257°F (-40°C to + 125°C).
• Water, water/ glycol and water/ oil emulsion hydraulic fluids up to +185°F (+85°C).
• Air within a temperature range of -40°F to +158°F (-40°C to + 70°C).
Part # I.D.
O.D. Working
Pressure
Burst
Pressure
Min. B/
Radius
Weight
/FT
Roll Length/
feet
List
Price
100R17025 1/4 0.49 3000
12000
1.97
0.14
164
----
100R17038 3/8 0.65 3000
12000
2.56
0.20
164
----
100R17050 1/2 0.78 3000
12000
3.54
0.34
164
----
100R17075 3/4 1.10 3000
12000
4.92
0.57
164
----
100R17100 1 1.43 3000
12000
5.91
1.02
65
----

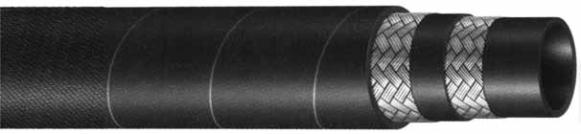

SAE100 R16
Part # I.D.
O.D. Working
Pressure
Burst
Pressure
Min. B/
Radius
Weight
/FT
Roll Length/
feet
List
Price
100R16025 1/4 0.57 5000
20000
1.97
0.19
164
----
100R16038 3/8 0.74 4000
16000
2.48
0.29
164
----
100R16050 1/2 0.86 3500
14000
3.46
0.35
164
----
100R16075 3/4 1.14 2250
9000
4.72
0.52
164
----
100R16100 1 1.44 2000
8000
5.91
0.73
65
----
Construction
• Tube:
Oil resistant Synthetic Rubber.
•
Reinforcement:
2-Wire Braid. High tensile steel wire.
•
Cover:
Oil, weather and abrasion resistant Synthetic Rubber.
• Hose is shipped in bundles.
• Reel $ available upon request.
Application and Temperature Range
• Petroleum base hydraulic fluids and lubricating oils within a temperature range of -40°F to +212°F (-40°C to + 125°C).
• Water, water/ glycol and water/ oil emulsion hydraulic fluids up to +185°F (+85°C).
• Air within a temperature range of -40°F to +158°F (-40°C to + 70°C).
