364
H
YDRAULIC
H
YDRAULIC
H
OSE
& F
ITTINGS
W
IRE
B
RAID
SAE100 R2 AT/ 2SN
SAE100 R1 AT/ 1SN
Part # I.D.
O.D. Working
Pressure
Burst
Pressure
Min. B/
Radius
Weight
/FT
Roll Length/
feet
100R1025 1/4 0.53 3250
13000
3.94
0.15
164
----
100R1038 3/8 0.69 2600
10400
5.12
0.23
164
----
100R1050 1/2 0.81 2325
9300
7.09
0.28
164
----
100R1075 3/4 1.09 1525
6100
9.45
0.42
164
----
100R1100 1 1.40 1275
5100
11.81
0.59
65
----
100R1125 1-1/4 1.71
625
2500
16.54
0.85
65
----
100R1150 1-1/2 1.99
500
2000
19.69
1.01
65
----
Part # I.D.
O.D. Working
Pressure
Burst
Pressure
Min. B/
Radius
Weight
/FT
Roll Length/
feet
100R2025 1/4 0.59 5800
23200
3.94
0.22
164
----
100R2038 3/8 0.75 4750
19000
5.12
0.36
164
----
100R2050 1/2 0.87 4000
16000
7.09
0.41
164
----
100R2075 3/4 1.15 3100
12400
9.45
0.60
164
----
100R2100 1 1.50 2400
9600
11.81
0.89
65
----
100R2125 1-1/4 1.90 1625
6500
16.54
1.39
65
----
100R2150 1-1/2 2.15 1250
5000
19.69
1.58
65
----

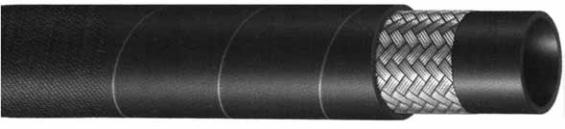

Construction
• Tube:
Oil resistant Synthetic Rubber.
•
Reinforcement:
1-Wire Braid. High tensile steel wire.
•
Cover:
Oil, weather and abrasion resistant Synthetic Rubber.
• Hose is shipped in bundles.
• Reel $ available upon request.
Application and Temperature Range
• Petroleum base hydraulic fluids and lubricating oils within a temperature range of -40°F to +212°F (-40°C to + 100°C).
• Water, water/ glycol and water/ oil emulsion hydraulic fluids up to +185°F (+85°C).
• Air within a temperature range of -40°F to +158°F (-40°C to + 70°C).
•
Maximum operating temperature:
125°C (257°F).
•
Air Maximum termperature:
70°C (160°F).

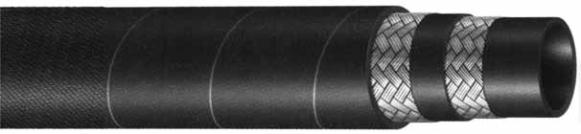

Construction
• Tube:
Oil resistant Synthetic Rubber.
•
Reinforcement:
2-Wire Braid. High tensile steel wire.
•
Cover:
Oil, weather and abrasion resistant Synthetic Rubber.
• Hose is shipped in bundles.
• Reel $ available upon request.
Application and Temperature Range
• Petroleum base hydraulic fluids and lubricating oils within a temperature range of -40°F to +212°F (-40°C to + 100°C).
• Water, water/ glycol and water/ oil emulsion hydraulic fluids up to +185°F (+85°C).
• Air within a temperature range of -40°F to +158°F (-40°C to + 70°C).
