366
H
YDRAULIC
*
= Reduced Port Only
Full Port available by special quote.
Construction:
Steel Body, Ball, Stem
Zinc Chromate Plate
Buna “O” Rings (Viton on request)
Delrin Ball Seats

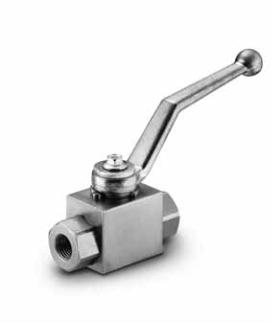

Two-Way
Three-Way
*
= Reduced Port Only
Available in Reduced Port
Full Port available by special quote.
Construction:
Steel Body, Ball, Stem
Zinc Chromate Plate
Buna “O” Rings (Viton on request)
Delrin Ball Seats
Also Available in Stainless Steel
BKH
BK3
Part Number
Nominal
Size
Thread
Working
Pressure
GE2-14-NPT
1/4"
1/4" NPTF
7250 PSI
----
GE2-38-NPT
3/8"
3/8" NPTF
7250 PSI
----
GE2-12-NPT
1/2"
1/2" NPTF
7250 PSI
----
GE2-34-NPT
3/4"
3/4" NPTF
5800 PSI
----
GE2-1-NPT
1"
1" NPTF
5075 PSI
----
*GE2-114T-NPT
1"
1-1/4" NPTF
5075 PSI
----
*GE2-112T-NPT
1"
1-1/2" NPTF
5075 PSI
----
*GE2-2T-NPT
2"
2" NPTF
5075 PSI
----
Part Number
Nominal
Size
Thread
Working
Pressure
GE2-04-SAE
1/4"
7/16-20 UNF
7250 PSI
----
GE2-06-SAE
3/8"
9/16-18 UNF
7250 PSI
----
GE2-08-SAE
1/2"
3/4-16 UNF
7250 PSI
----
GE2-12-SAE
3/4"
1-1/16-12 UNF
5800 PSI
----
GE2-16-SAE
1"
1-5/16-12 UNF
5075 PSI
----
*GB2-20T-SAE
1"
1-5/8-12 UNF
5075 PSI
----
*GB2-24T-SAE
1"
1-7/8-12 UNF
5075 PSI
----
*GB2-32T-SAE
2"
2-1/2-12 UNF
5075 PSI
----
Part Number
Nominal
Size
Thread
Working
Pressure
GE3L-14-NPT
1/4"
1/4" NPTF
5800 PSI
----
GE3L-38-NPT
3/8"
3/8" NPTF
5800 PSI
----
GE3L-12-NPT
1/2"
1/2" NPTF
5800 PSI
----
GE3L-34-NPT
3/4"
3/4" NPTF
5075 PSI
----
GE3L-1-NPT
1"
1" NPTF
5075 PSI
----
*GE3L-114T-NPT
1 1/4"
1 1/4" NPTF
5075 PSI
----
*GE3L-112T-NPT
1 1/2"
1 1/2" NPTF
5075 PSI
----
*GE3L-2T-NPT
2"
2" NPTF
5075 PSI
----
Part Number
Nominal
Size
Thread
Working
Pressure
GE3L-04-SAE
1/4"
7/16-20 UNF
5800 PSI
----
GE3L-06-SAE
3/8"
9/16-18 UNF
5800 PSI
----
GE3L-08-SAE
1/2"
3/4-16 UNF
5800 PSI
----
GE3L-12-SAE
3/4"
1-1/16-12 UNF
5075 PSI
----
GE3L-16-SAE
1"
1-5/16-12 UNF
5075 PSI
----
*GB3L-20T-SAE
1 1/4"
1-5/8-12 UNF
5075 PSI
----
*GB3L-24T-SAE
1 1/2"
1-7/8-12 UNF
5075 PSI
----
*GB3L-32T-SAE
2"
2-1/2-12 UNF
5075 PSI
----
H
IGH
P
RESSURE
B
ALL
V
ALVES
H
YDRAULIC
A
DAPTERS
Temp Rating = -22° - 212°F
Temp Rating = -22° - 212°F
