180

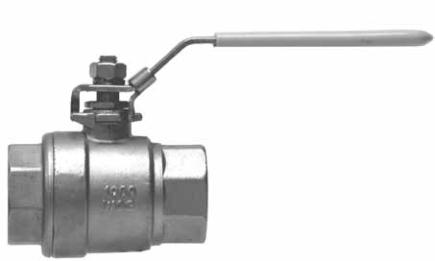

1000 PSI 2 PC FULL PORT STAINLESS STEEL VALVE
Part # Size D L H S Approx.
Wt. Lbs.
949-181 1/4" 0.46 1.84 1.89 4.06 0.44 ----
949-182 3/8" 0.46 1.91 1.89 4.06 0.55 ----
949-183 1/2" 0.59 2.28 1.89 4.06 0.66 ----
949-184 3/4" 0.79 2.56 2.05 4.84 0.77 ----
949-185 1" 0.98 3.03 2.45 4.84 1.43 ----
Features:
• Investment Casting body
• Working pressure 1000 psi for W.O.G.
• Adjustable stem packing
• Pure teflon seals and seats
• Temperature range: -60 to 450°F
• Blow-out proof stem and safe pressure-reducing hole
• 100% leakage tested at 100 psi air under water
• Hydrostatic test pressure: 1500 psi
• Locking handle w/ yellow generic sleeve
Materials: CFM8M (SS316), DIN 1.4408
no. name material qty
1 CAP 316 SS 1
2 BALL SEAT PTFE 2
3 JOINT GASKET PTFE 1
4 BODY 316 SS 1
5 BALL 316 SS 1
6 THRUST WASHER PTFE 1
7 STEM PACKING PTFE 1
8 GLAND NUT 304 SS 1
9 STEM 316 SS 1
10 STEM NUT 304 SS 1
11 SPRING WASHER 304 SS 1
12 HANDLE 304 SS 1
13 PLASTIC SLEEVE PVC 1
Pressure-temperature ratings
1000
800
600
400
-20 100 200 300 400 500 0
(-29) (38) (93) (149) (204) (260°C) (-10)
200 Pressure psi
temperature f° (°C)
Lock
H
L
S
D
13
12
10
11
8
7
6
9
1 3 4 5 2
V
ALVES
STAINLESS BALL V ALVES STAINLESS STEEL VALVES
The true measure of a man is how he treats
someone who can do him absolutely no good.
- Samuel Johnson
Valves will accept a pad-lock on the handle.
