179
V
ALVES
Y
ellow locking handle now standard
dimensions (inches)
Larger sizes available on special order basis
Part#
Size
D
L
H
W
949-101
1/4"
.18
2.24
1.54
3.15
----
949-102
3/8"
.27
2.24
1.73
3.15
----
949-103
1/2"
.36
2.48
2.20
3.62
----
949-104
3/4"
.49
2.95
2.32
3.62
----
949-105
1"
.59
3.50
2.80
4.13
----
949-106
1-1/4"
.79
4.13
3.07
4.13
----
949-107
1-1/2"
.98
4.65
3.27
5.08
----
949-108
2"
1.26
5.35
3.94
5.08
----
SS = Stainless Steel
Item Parts
Material
1
Plastic Cover
Plastic
2
Handle
AISI 304 SS
3
Thrust Washer
PTFE
4
Packing Ring
AISI 304 SS
5
Stem Packing
PTFE
6
Seat
PTFE
7
Seat
AISI 316 SS
8
Stem Nut
AISI 304 SS
9
Ball
316SS ASTM-A351 CF8M
10
Cap
316SS ASTM-A351 CF8M
11
Body 316SS ASTM-A351 CF8M
Private Label handles available.
See Page 162 for details

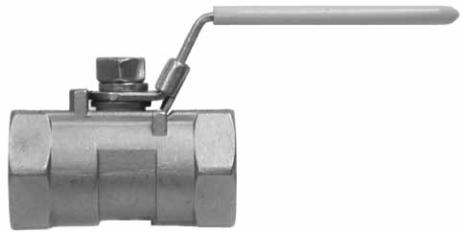

ONE PIECE STANDARD PORT BALL VALVE
316 Stainless Steel
1000 PSI
S
TAINLESS
B
ALL
V
ALVES
S
TAINLESS
S
TEEL
V
ALVES
Valves will accept a pad-lock on the handle.
