Part# Size D L H W
949-161 1/4" .46 2.24 1.93 4.13 ----
949-162 3/8" .50 2.24 1.93 4.13 ----
949-163 1/2" .59 2.48 2.01 4.13 ----
949-164 3/4" .78 2.95 2.28 5.12 ----
949-165 1" .98 3.50 2.76 5.71 ----
949-166 1-1/4" 1.26 4.13 2.87 5.71 ----
949-167 1-1/2" 1.50 4.65 3.29 7.48 ----
949-168 2" 2 5.35 3.62 7.48 ----
Yellow locking handle now standard!
dimensions (inches)
Larger sizes available on special order basis
SS = Stainless Steel

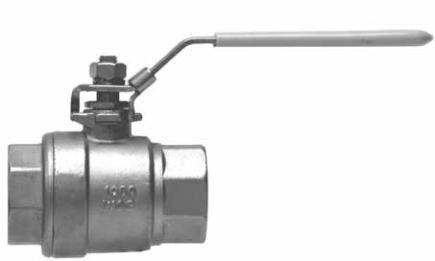

TWO PIECE FULL PORT BALL VALVE
316 Stainless Steel
1000 PSI
Item Parts Material
1 Body 316SS ASTM-A351 CF8M
2 Body Cap 316SS ASTM-A351 CF8M
3 Ball 316SS ASTM-A351 CF8M
4 Seat Reinforced PTFE
5 Stem AISI 316 SS
6 Seal Reinforced PTFE
7 Thrust Washer Reinforced PTFE
8 Packing Reinforced PTFE
9 Gland Nut AISI 304SS
10/11 Nut & Washer AISI 304SS
12 Handle AISI 304SS
13 Plastic Cover Plastic
Dimensions may change without notice. Please
contact us if they are critical.
STAINLESS STEEL BALL V ALVES STAINLESS STEEL VALVES
Private Label handles available.
See Page 162 for details
Valves will accept a pad-lock on the handle.
