2000 PSI STANDARD PORT
Part #
Size
d
H
E
L
Box
Case
949-121
1/4
.20
1.14
2.40
1.71
10
100
----
949-122
3/8
.28
1.38
3.55
1.87
10
100
----
949-123
1/2
.36
2.60
4.08
2.20
5
75
----
949-124
3/4
.49
2.72
4.21
2.58
5
60
----
949-125
1
.59
2.95
4.65
3.19
6
36
----
949-126
1-1/4
.78
3.07
5.83
3.62
4
20
----
949-127
1-1/2
1.02 3.39
5.83
3.78
3
15
----
949-128
2
1.26 3.86
5.90
4.49
3
12
----
• For chemical and industrial applications.
• Blow-out proof stem design.
• 100% air tested under water, at 100 psi, open and
closed positions.

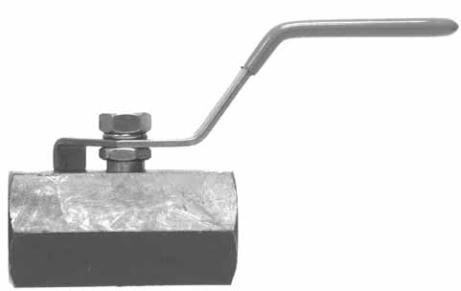

STANDARD PORT CARBON STEEL BALL VALVE
SPECIFICATIONS
• Working Pressure: 1/4” ~ 1” 2000 psi WOG,
1-1/4” ~ 2” 1500 psi WOG,
• Temperature Range: -60
0
to 450
0
F
• End types: Threaded
• 1 piece ball valve reducing bore
• Reinforced PTFE seat
L
13
12
11
8
7
10
4
5
6
3
d
H
14
2
1
9
F
HANDLE: 1/4" ~3/8"
Item
Parts
Material
1
Body
ASTM A108 CL. 1018
or AISI 1021 C.S.
2
Unscrewed Seat Retainer
3
Ball
SS304
4
Stem
SS316
5
Ball Seat
RPTFE
6
Cap Seal
PTFE
7
Packing
PTFE
8
Handle
SS304
9
Handle Sleeve
Vinyl Grip
10
Thrust Washer
PTFE
11
Gland
SS304
12
Washer
SS304
13
Handle Nut
SS304
14
Stem Nut
SS304
