General Purpose

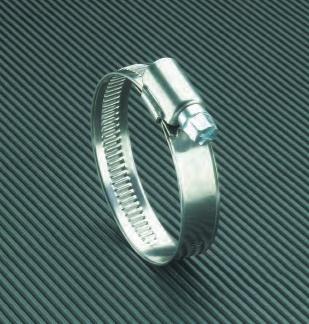

NON-PERFORATED BAND CLAMPS
Preferred by the European original equipment and
replacement markets, the non-perforated band protects
silicone and other soft hose surfaces from extruding or
shearing during installation. Available in 9mm and 12mm
band widths in both part stainless (W2) and all stainless
(W4) configurations.
Ideal 53101 Series / Tridon 901 Series
Non-perforated clamp design
Screw: 7mm hex-head. Combination slot.
Plated carbon steel.
Band and housing: 9mm design.
300 grade stainless steel.
Ideal 53102 Series / Tridon 902 Series
Non-perforated clamp design.
Screw: 7mm hex-head. Combination slot.
Plated carbon steel.
Band and housing: 12mm design.
300 grade stainless steel.
Ideal 53103 Series / Tridon 903 Series
All 300 grade stainless steel, non-perforated clamp design.
Screw: 7mm hex-head. Slotted. 300 grade stainless steel.
Band and housing: 9mm design. 300 grade stainless steel.
Ideal 53104 Series / Tridon 904 Series
All 300 grade stainless steel, non-perforated clamp design.
Screw: 7mm hex-head. Slotted. 300 grade stainless steel.
Band and housing: 12mm design. 300 grade stainless steel.
8
Measurements in illustrations are in inches [millimeters]
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
