General Purpose
7
LINED CLAMPS
Lined clamps are specially designed for
use with silicone rubber and other soft
hose applications. The liner protects the
hose surface and prevents it from
extruding or shearing through the band
notches as the clamp is tightened.
Hose installed with
unlined clamp
Hose installed with
lined clamp

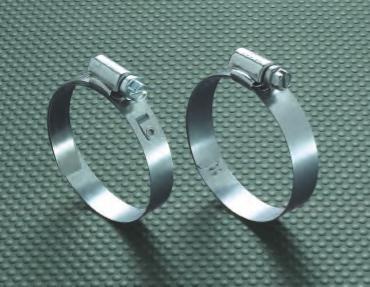

Ideal 53 Series / Tridon 613 Series
Tridon Automotive Series “ET”
Screw: 5/16" hex-head.
Plated carbon steel.
Band, liner and housing: 1/2" design.
201/301 stainless steel.
Ideal 65E Series / Tridon 615 Series
Screw: 5/16" hex-head. High-nickel grade stainless steel.
Band, liner and housing: 9/16" (Ideal); 1/2" (Tridon).
High-nickel grade stainless steel.
Measurements in illustrations are in inches [millimeters]
53 / 613
Series
65E / 615
Series
SAE Ideal
Tridon
Ideal
Tridon
English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No.
Part No.
Part No.
Part No.
Min. Dia. Max. Dia.
Min. Dia.
Max. Dia.
Min. (in.)
Max. (in.)
53
613
(1)
65-E
(2)
615
6
5306 613-006 6506E 615-006*
5/8
7/8
16
22
-
3/8
8
5308 613-008 6508E 615-008*
5/8
1
16
25
-
1/2
10
5310 613-010 6510E 615-010*
3/4
1 1/16
19
27
-
5/8
12
5312 613-012 6512E 615-012*
7/8
1 1/4
22
32
-
3/4
16
5316 613-016 6516E 615-016*
1
1 1/2
26
38
3/4
1
20
5320 613-020 6520E 615-020*
1 1/8
1 3/4
29
44
7/8
1 1/4
24
5324 613-024 6524E 615-024*
1 1/4
2
32
51
1
1 1/2
28
5328 613-028 6528E 615-028*
1 5/16
2 1/4
33
57
1 1/8
1 3/4
32
5332 613-032 6532E 615-032*
1 9/16
2 1/2
40
63
1 1/4
2
36
5336 613-036 6536E 615-036* 1 13/16 2 3/4
46
70
1 1/2
2 1/4
40
5340 613-040 6540E 615-040*
2 1/16
3
52
76
1 3/4
2 1/2
44
5344 613-044 6544E 615-044*
2 5/16
3 1/4
59
82
2 1/8
2 3/4
48
5348 613-048 6548E 615-048*
2 9/16
3 1/2
65
89
2 1/4
3
52
5352 613-052*
6552E 615-052* 2 13/16 3 3/4
72
95
2 1/2
3 1/4
56
5356 613-056*
6556E 615-056*
3 1/16
4
78
101
2 3/4
3 1/2
60
5360 613-060*
6560E 615-060*
3 5/16
4 1/4
84
108
3 1/8
3 3/4
64
5364 613-064*
6564E 615-064*
3 9/16
4 1/2
91
114
3 1/4
4
72
5372 613-072*
6572E 615-072*
4 1/16
5
103
127
3 3/4
4 1/2
(1)
Tridon Automotive Series “ET”
(2)
65-E clamps have a 9/16" band
Additional sizes available - Contact Ideal for information
* Non-stocking item
LINED CLAMPS
CLAMPING RANGE
We recommend a minimum of all 300 grade stainless steel clamps for marine applications.
For applications directly over galvanized steel, we recommend an intermediate layer of non-conductive material such as vinyl electrical tape.
