General Purpose
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering. 6

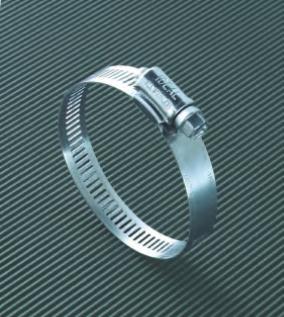

MILITARY WORM DRIVE CLAMPS
Manufactured to Military Specifications MS35842
and AA-52506B.
Ideal 62MS Series / Tridon 632 Series
Screw: 5/16" hex-head stainless steel.
Band and housing: 1/2" design.
201/301 stainless steel.
Measurements in illustrations are in inches [millimeters]

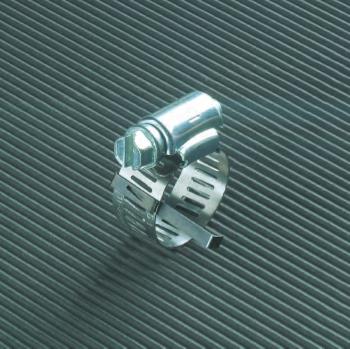

AC CLAMPS
Stainless steel locator bar helps assure proper positioning
of clamps over air conditioning fitting.
Ideal 62 Series / Tridon 684 Series
Tridon Automotive Series “AC”
Screw: 5/16" hex-head. Plated carbon steel.
Band: 1/2" design. Stainless steel.
Housing: Plated carbon steel.
SAE Ideal Tridon English (in.) Metric (mm)
Sizes Part No. Part No. Min. Dia. Max. Dia. Min. Dia. Max. Dia.
62 684 (1)
8 6274 684-008 7/16 1 11 25
12 6277 684-012 1/2 1 1/4 13 32
(1) Automotive Series “AC”
Ideal Tridon English (in.) Metric (mm)
Part No. Part No. Min. Dia. Max. Dia. Min. Dia. Max. Dia.
62MS 632
6210 632-006 3/8 7/8 10 22
6211 632-012 1/2 1 1/4 13 32
6212 632-024 1 2 26 51
6213 632-036 1 3/4 2 3/4 44 70
6214 632-048 1 1/2 3 1/2 38 89
6215 632-060 2 1/4 4 1/4 57 108
6216 632-104* 4 7 102 178
* Non-stocking item
AC CLAMPS CLAMPING RANGE MILITARY SPEC CLAMPS CLAMPING RANGE
