General Purpose
Fuel Injection Clamps
Fuel injection system clamps are designed to
provide the uniform sealing pressure required
on fuel injection hose.
They feature non-perforated rolled-edge bands
with a special nut and bolt-tightening design.
Ideal 52F Series / Tridon 905 Series
Tridon Automotive Series “F.I.”
Screw: 7mm hex-head.
Zinc-plated, clear chromate, carbon steel.
Band: 9mm wide.
Zinc-plated, clear chromate, carbon steel.
5
SAE Ideal Tridon English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Part No. Min.Dia. Max.Dia. Min.Dia. Max.Dia.
52F 905 (1)
4 52F13 905-004 7/16 1/2 11 13 1/4"
6 52F15 905-006 1/2 9/16 13 15 5/16"
8 52F16 905-008 9/16 5/8 14 16 3/8"
(1) Automotive Series “F.I.”
SAE Ideal Tridon Ideal Tridon Ideal Tridon English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Part No. Part No. Part No. Part No. Part No. Min.Dia. Max.Dia. Min.Dia. Max.Dia. Min.(in.) Max.(in.)
62P 325 62M 345 N/A 350 (1)
4 6204(2) 325-004 62604(4) 345-004 - 350-004 1/4 5/8 6 16 1/8 5/16
5 62P05 325-005 62M05 345-005 - 350-005 1/4 11/16 7 17 1/8 3/8
6 6206(3) 325-006 62606 345-006 - 350-006 5/16 7/8 8 22 1/4 7/16
8 62P08 325-008 62M08 345-008 - 350-008 3/8 1 10 25 5/16 1/2
10 62P10 325-010 62M10 345-010 - 350-010 3/8 1 1/16 10 27 5/16 5/8
12 62P12 325-012 62M12 345-012 - 350-012 1/2 1 1/4 13 32 5/8 3/4
16 62P16 325-016 62M16 345-016 - 350-016 1/2 1 1/2 13 38 5/8 1
20 62P20 325-020 62M20 345-020* - 350-020 3/4 1 3/4 19 44 1 1 1/4
24 62P24 325-024 62M24 345-024* - 350-024 1 2 26 51 1 1/4 1 1/2
28 62P28 325-028 62M28 345-028* - 350-028 1 1/4 2 1/4 32 57 1 1/2 1 3/4
30 62P30 325-030* 62M30 345-030* - 350-030 1 3/8 2 3/8 35 60 1 5/8 1 7/8
32 62P32 325-032 62M32 345-032* - 350-032 1 1/2 2 1/2 38 63 1 3/4 2
36 62P36 325-036 62M36 345-036* - 350-036 1 3/4 2 3/4 45 70 2 2 1/4
44 62P44 325-044* 62M44 345-044* - 350-044 2 1/4 3 1/4 57 82 2 1/4 2 3/4
48 62P48 325-048* 62M48 345-048* - 350-048 2 1/2 3 1/2 64 89 2 1/2 3
(1) Automotive Series “MAH” (3) Old #6203 Additional sizes available - Contact Ideal for information
(2) Old #6202 (4) Old #62602 * Non-stocking item
FUEL INJECTION CLAMPS CLAMPING RANGE
MICRO GEAR CLAMPS CLAMPING RANGE

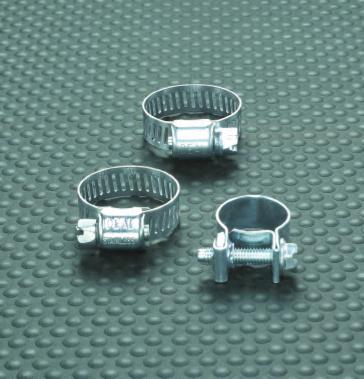

SMALL DIAMETER CLAMPS
Micro-Gear ® Clamps
Micro-Gear clamps are tiny,
tough and precision engineered
for use in such small hose
applications as emission control,
fuel lines and vacuum hoses.
Their slim, 5/16" band and low
profile housing make them easy
to install in confined areas.
Ideal 62P Series
Tridon 325 Series
Screw: 1/4" hex-head.
Plated carbon steel.
Band and housing: 5/16" design.
201/301 stainless steel.
Tridon 350 Series (Ideal N/A)
Tridon Automotive Series“MAH”
Screw: 1/4" hex-head.
410 stainless steel.
Band and housing: 5/16" design.
201/301 grade stainless steel.
Ideal 62M Series
Tridon 345 Series
Screw: 1/4", high-nickel grade stainless steel.
Band and housing: 5/16" design.
High-nickel grade stainless steel.
62M / 345
Series
52F / 905
Series
N/A - Not Available
We recommend a minimum of all 300 grade stainless steel clamps for marine applications.
For applications directly over galvanized steel, we recommend an intermediate layer of non-conductive material such as vinyl electrical tape.
62P / 325
Series
