LOX-ON
Ideal 69 Series (Tridon N/A)

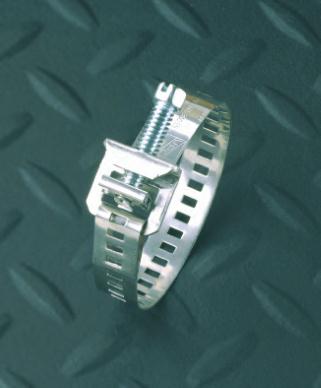

For extra-tough installations. Unique design provides
double-locking security and high band tension for high
sealing pressures.
Screw: 5/16" hex-head.
300 grade stainless steel.
Band and housing: 1/2" design.
300 grade stainless steel.
Simplified inventory – just one size.
#6932 will handle from 1/2" through 2" pipe.
Lox-On comes flat – easy to stock, easy to store.
A Lox-On user is never without the right size clamp.
Insert band thru buckle from underneath. Pull band snug about
pipe and engage serration of band on inner lug.
Bend band at 90° from buckle and engage outer tooth with
serration. Hold band down and tighten screw.
A. Illustrates Lox-On compression at only 20 in. lbs. tightening
torque on 160 PSI (high density) polyethylene pipe. This is half
the torque generally applied to conventional worm drive clamps.
B. Patented, offset buckle provides full circle seal. Lox-On
conforms to the contour of the pipe.
LOX-ON SAFETY MARGIN
10 20 30 40 50 60 70
300
250
200
150
100
50
LOX-ON
WORM
DRIVE
CLAMPS
WATER PRESSURE (PSI) SEALED
WITHOUT LEAKAGE
TIGHTENING TORQUE (IN. LBS.)
REQUIRED FOR LEAKPROOF SEAL
SAE Ideal English (in.) Metric (mm) Length
Sizes Part No. Min. Dia. Max. Dia. Min. Dia. Max. Dia. English (in.) Metric (mm)
69
12 6912 11/16 1 1/4 17 32 4 13/16 122
20 6920 11/16 1 3/4 17 44 6 13/32 163
32 6932 11/16 2 5/8 17 67 8 29/32 226
72 6972 1 3/4 5 44 127 16 5/16 414
104 69104 4 7 1/4 102 184 23 5/16 592
LOX-ON CLAMPING RANGE
N/A - Not Available We recommend a minimum of all 300 grade stainless steel clamps for marine applications.
For applications directly over galvanized steel, we recommend an intermediate layer of non-conductive material such as vinyl electrical tape.
