TWO PART CLAMPS

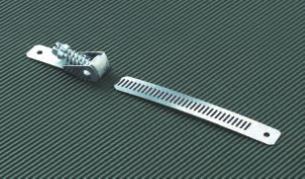

This unique two part clamp is adaptable to a variety
of latching or locking applications where repeated
opening and closing is necessary. Holes in the end
of each part allow for permanent installation of
clamp with rivets or screws.
Screw: 5/16" hex-head. Plated carbon steel.
Band and housing: 1/2" wide stainless steel.
Measurements in illustrations are in inches (millimeters)
NYLON CABLE TIES
One piece 6/6 nylon for tying, bundling and positioning in industrial, PHAC, automotive and marine applications.
Corrosion and fungus-resistant. Available in diameters from 1/16" to 13".
Ideal 665 Series (Tridon N/A)
Self-locking.
• Install easily with or
without tools
• Corrosion and fungus resistant
• Tapered tips slip easily under
and around cables
• Flexible nylon conforms
readily to most shapes
• Uniform serrations along the tie
permit easy “pull-through” right
down to the bundle – ready for
final tensioning and cut off for
a neat, tight harness
Ideal 666 Series (Tridon N/A)
Self-locking with mounting heads
for quick, simple cable mounting.
• Once ties are installed, simply
pass a screw, bolt or rivet
through mounting hole to
secure harness in place
• Bundling and mounting is
done with one unit
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
Ideal
English (in.) Min. Tensile Applicable
Part No.
Min. Dia.
Max. Dia.
Strength Mil. Spec.
665
66501 1/16
1
18 lbs.
MS3367-4
66502 1/16
1 1/4
30 lbs.
MS3367-5
66505 1/16
1 3/4
50 lbs.
MS3367-1
66506 1/16
3
50 lbs.
MS3367-7
66507 1/16
4
50 lbs.
MS3367-2
66509 3/16
4
120 lbs.
MS3367-3
66510 3/16
6
175 lbs.
MS3367-3
66511 3/16
9
175 lbs.
MS3367-6
66512 3/16
13
175 lbs.
None
CLAMPING RANGE
NYLON CABLE TIES - 665 SERIES
Ideal
English (in.) Min. Tensile Hole
Part No.
Min. Dia.
Max. Dia.
Strength Size
666
66604 1/16
1 3/4
50 lbs.
0.208
66605 1/16
4
50 lbs.
0.208
66606 3/16
4
120 lbs.
0.250
CLAMPING RANGE
NYLON CABLE TIES - 666 SERIES
Ideal
Tridon
Part No.
Part No.
Band Length
Hole Diameter
58 (2-pc) Series 502 Series
Inches
mm Inches
mm
5823
502-002
1.86
47.2
0.13
3.3
5825
502-003
1.50
38.1
0.13
3.3
5829
502-004
3.72
94.5
0.13
3.3
5830
502-005
3.63
92.1
0.25
6.4
HOUSING
Ideal 58 Series / Tridon 502 Series
Ideal 62 Series / Tridon 503 Series
Also available in all zinc-plated, carbon steel. Contact Ideal for details.
N/A
- Not Available
Ideal
Tridon
Part No.
Part No.
Band Length
Hole Diameter
62 (2-pc) Series
503 Series
Inches
mm Inches
mm
62647
503-002
4.81
122.2
0.13
3.3
62648
503-003
3.88
98.4
0.13
3.3
62649
503-004
6.50
165.1
0.13
3.3
62650
503-005
4.75
120.7
0.13
6.4
62654
503-006
10.06
255.6
0.13
3.3
62655
503-007
2.00
50.8
0.13
3.3
62656
503-008
6.00
152.4
0.25
6.4
BAND
