QUICK RELEASE CLAMPS

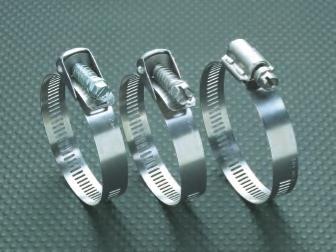

Quick release style worm drive clamps are
indispensable for installation in closed
systems where the clamp must be disengaged
to be applied. The swivel-action locking of
screw to band makes both installation and
removal fast and easy.
Ideal Snaplock
®
56 Series (Tridon N/A)
Screw: 5/16" hex-head. Plated carbon steel.
Band and housing: 9/16" design.
201/301 stainless steel.
Ideal Snaplock
®
58 Series (Tridon N/A)
Screw: 3/8" hex-head. 410 stainless steel.
Band and housing: 9/16" design.
201/301 stainless steel.
Tridon 500 Series (Ideal N/A)
Screw: 5/16" hex-head. Plated carbon steel.
Band and housing: 1/2" design.
201/301 stainless steel.
Tridon 550 Series (Ideal N/A)
Screw: 5/16" hex-head. 410 stainless steel.
Band and housing: 1/2" design.
201/301 stainless steel.
Clamps are shipped disengaged. Information on special sizes available on request.
SURELOCK QUICK ENGAGEMENT CLAMPS
Surelock’s bind-free pull-through design makes installation quick
and easy. Captured screw design makes engagement and final
tensioning trouble-free. Extended housing embraces 25% more
screw threads than competitive designs.
Ideal Surelock 48 Series (Tridon N/A)
Screw: 5/16" hex-head. 300 grade stainless steel.
Band and housing: 9/16" design. 300 grade stainless steel.
Measurements in illustrations are in inches [millimeters]
56 / 500
Series
58 / 550
Series
48
Series
SAE Ideal
Tridon Ideal
Tridon English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Part No. Part No. Part No. Min.Dia. Max.Dia. Min.Dia. Max.Dia. Min.(in.) Max.(in.)
56
500
58 550
012 5612 500-012* 5812 550-012* 1/2 1 1/4 13
32
3/8
3/4
020 5620 500-020* 5820 550-020* 3/4 1 3/4 19
44
3/4
1 1/8
024 5624 500-024* 5824 550-024* 1
2
26
51
7/8
1 3/8
028 5628 500-028* 5828 550-028* 1 2 1/4 26
57
7/8
1 5/8
036 5636 500-036* 5836 550-036* 1 2 3/4 26
70
7/8
2
048 5648 500-048* 5848 550-048* 1 1/2 3 1/2 38
89 1 1/2 2 3/4
056 5656 500-056 5856 550-056 1
4
26 101 7/8
3 1/2
072 5672 500-072 5872 550-072 2
5
51 127
2
4 1/2
088 5688 500-088 5888 550-088 2
6
51 152
2
5 1/2
104 56104 500-104 58104 550-104 1 3/4 7
45 178 1 3/4 6 1/2
116 56116 500-116* 58116 550-116* 1 3/4 7 3/4 45 197 1 3/4
7
128 56128 500-128 58128 550-128 2 1/4 8 1/2 45 216 1 3/4 7 1/2
136 56136 500-136* 58136 550-136 1 3/4 9
45 228 1 3/4 8 1/2
152 56152 500-152 58152 550-152 2
10
51 254
2
9 1/2
188 56188 500-188 58188 550-188 2 12 1/4 51 311
2
11 1/2
* Non-stocking item Additional sizes available - Contact Ideal for information.
SNAPLOCK/QUICK RELEASE CLAMPING RANGE
N/A
- Not Available
SAE Ideal
English (in.) Metric (mm) Fits Hose I.D.
Sizes Part No. Min. Dia. Max.Dia. Min.Dia. Max.Dia. Min.(in.) Max.(in.)
48
12 48012 1/2 1 1/4 13
32
3/8
3/4
20 48020 3/4 1 3/4 19
44
3/4
1 1/8
24 48024 3/4
2
19
51
3/4
1 3/8
28 48028 1
2 1/4 26
57
7/8
1 5/8
32 48032 1
2 1/2 26
63
7/8
1 7/8
36 48036 7/8 2 3/4 22
70
3/4
2
48 48048 1
3 1/2 26
89
1
2 3/4
56 48056 1
4
26
101
1
3 1/2
72 48072 2
5
51
127
2
4 1/2
80 48080 2 9/16 5 1/2 65
140 2 1/2
5
88 48088 2
6
51
152
2
5 1/2
104 48104 2
7
51
178
2
6 1/2
116 48116 1 3/4 7 3/4 44
197 1 3/4
7
128 48128 4 1/4 8 1/2 108 216 4 1/4
8
152 48152 4
10
102 254
4
9 1/2
180 48180 7 3/4 11 3/4 197 298 7 1/2
11
188 48188 6 1/4 12 1/4 159 311
6
11 1/2
Additional sizes available - Contact Ideal for information
SURELOCK CLAMPING RANGE
