Heavy-Duty
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
60 / 6P / 850
Series
6L / 6M / 843
Series
12

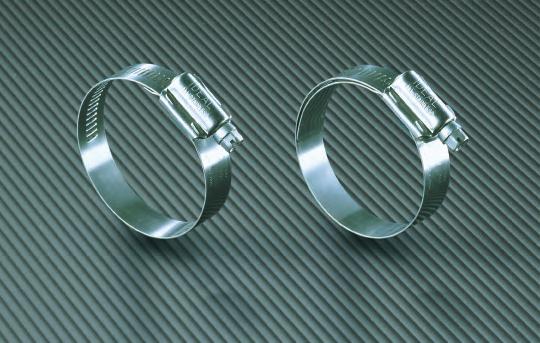

HIGH PERFORMANCE WORM DRIVE CLAMPS
Ideal POW’R-GEAR® 60 Series/Tridon TRIMAX® 850Series
The premier clamp in the industry.
Screw: 5/16" hex-head. 410 stainless steel.
Band: 5/8" design. 0.028" thick. 300 grade stainless steel.
Housing: 0.060" thick. 300 grade stainless steel.
Ideal 300 Grade Stainless Steel POW’R-GEAR ®
6P Series (Tridon N/A)
All 300 grade stainless steel construction.
Screw: 5/16" hex-head. 305 stainless steel.
Band: 5/8" design. 0.028" thick. 300 grade stainless steel.
Housing: 0.060" thick. 300 grade stainless steel.
Ideal Lined POW’R-GEAR® 6L Series
Tridon TRIMAX® 843 Series
For maximum protection of soft hoses. Protective liner
prevents extrusion and shearing of hose through band
notches. Extended band design prevents liner from skewing
during installation.
Screw: 5/16" hex-head. 410 stainless steel.
Band Liner: 5/8" design. 0.028" thick.
300 grade stainless steel.
Housing: 0.060" thick. 300 grade stainless steel.
Ideal 300 Grade Stainless Steel Lined POW’R-GEAR®
6M Series (Tridon N/A)
All 300 grade stainless steel construction.
Screw: 5/16" hex-head. 305 stainless steel.
Band Liner: 5/8" design. 0.028" thick. 300 grade stainless steel.
Housing: 0.060" thick. 300 grade stainless steel.
Premium POW’R-GEAR® and TRIMAX® clamps are designed for high vibration and stubborn leakage applications such as
industrial machinery, heavy truck, farm and off-road equipment engines.
Featuring an extra wide 5/8" band and a wide profile housing that provides maximum engagement of screw threads to band,
POW’R-GEAR® and TRIMAX® clamps are engineered to deliver exceptionally high rates of band tension to handle even the
toughest sealing jobs.
N/A - Not Available
Measurements in illustrations are in inches [millimeters]
